Canon LI7030SA CMOS Sensor

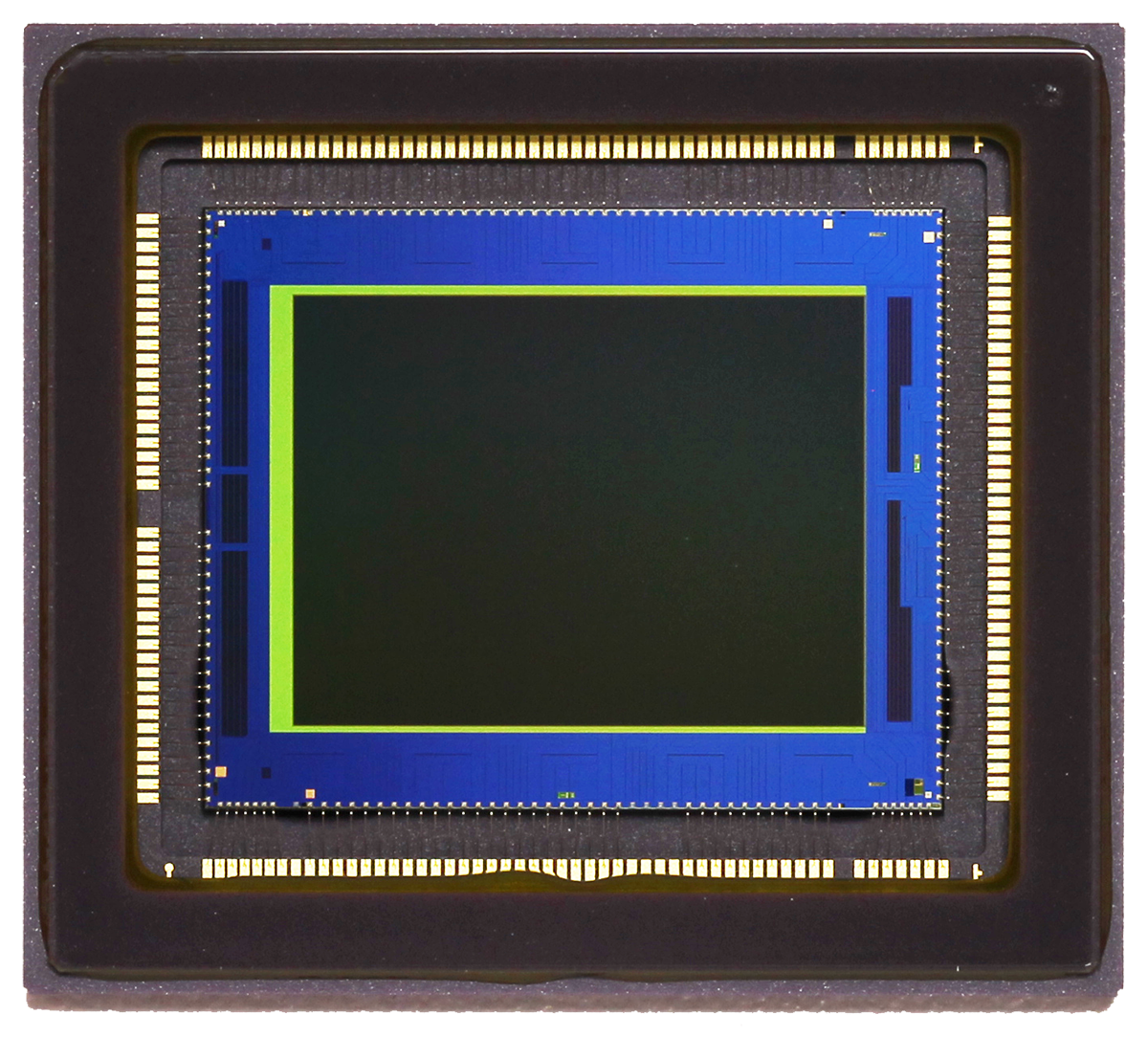

- Canon LI7030SA Front
Canon LI7030SA Wide-Dynamic Range/Low Noise 4K3K 1inch CMOS Sensor
The Canon LI7030SA is a CMOS type solid-state imaging sensor having a size equivalent to 1 inch, and 3.2 μm square pixel arrangement with 12 mega effective pixels. Video of 4K3K at 24 fps (12bit), 4K2K at 60 fps (10bit) and HD720p at 120 fps (10bit) can be achieved. Based on Canon’s low-noise technology, LI7030SA has a high dynamic range and achieved excellent imaging characteristics at low illuminance.
Technical Specifications
| Filter Type | RGB (RGB on-chip color filter) |
|---|---|
| Recording screen size: | 1 inch or equivalent (12.8 mm x 9.6 mm) |
| Number of effective pixels: | 4004 x 3000 (Horizontal x Vertical) |
| Pixel size: | 3.2 μm x 3.2 μm |
| Output format: | LVDS output, 648 Mbps (max.) |
| Analog gain: | 0dB, 6dB, 12dB, 18dB and 24dB |
| Saturation: | 25,000 e |
| Dark Random Noise: | 2.6 erms @4K3K readout, 24 fps (12bit) |
| Dark Current: | 17 e/sec @60°C (package reverse side), 4K3K readout, 24 fps (12bit) |
| Power consumption: | 540 mW @4K2K readout, 60fps (10bit) |
| Power supply voltage: | 3.3 V, 1.8V |
