TQMa93xxCA Embedded Cortex®-A53 module

Embedded Cortex®-A55 module based on i.MX 93xx with Machine Learning Accelerator

The TQMa93xxCA based on the i.MX 93xx supports with many features and an integrated NPU (Neural Processor Unit) with up to 0.5 TOPS in the implementation of applications where artificial intelligence, machine learning/vision is to be applied. A GPU and several graphic interfaces are available for graphically demanding applications. For real-time and security the CPU is supported by a Cortex M33 controller.



Features

  • Arm® Cortex® A55 based on i.MX 93xx
  • Machine Learning Accelerator 0.5 TOPS
  • Integrated Cortex®-M33
  • High-speed communication via 2x Gbit Ethernet (1x TSN), 2x USB 2.0 interface
  • Low power consumption (typ. 2W)
  • Integrated security functions

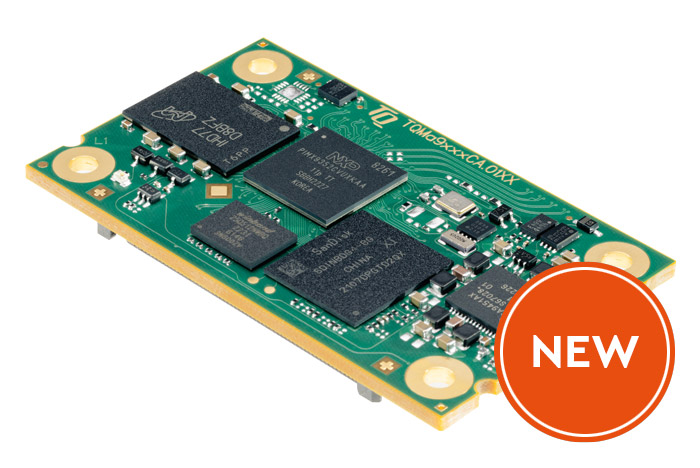

TQMa93xxCA - New

Specifications

CPU

CPU/Processor:

  • Cortex®-A55 - Up to 1.7GHz

CPU variant:

  • i.MX 93x1 Single Core
  • i.MX 93x2 Dual Core
Memory

LPDDR4:

  • Up to 2 GB

Quad SPI NOR:

  • Up to 256 MB

eMMC:

  • Up to 256 GB

EEPROM:

  • 0/64-kbit
Graphics

Graphic interface:

  • LCD Interface: 1x MIPI DSI (4 Lanes), 1x LVDS (4 Lanes)

Camera interface:

  • 1x MIPI CSI2 (2 Lanes)
Communications Interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet (1x TSN)

USB:

  • Up to 2x USB 2.0

CAN:

  • Up to 2x CAN FD

Serial Ports:

  • Up to 2x UART
Other Interfaces

SD Card:

  • Up to 3x SDIO / eMMC

I2C:

  • Up to 8x I²C

SPI:

  • Up to 8x SPI
  • Up to 1x QSPI

I2S:

  • Up to 7x I²S

Audio:

  • Up to 8x PDM Mic.
  • Up to 1x SPDIF

Debug:

  • JTAG
General

Dimensions:

  • 54mm x 32mm

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature range: -40°C - +85°C

Plug-in System:

  • 240 pins 0.5 mm Pitch Connector

Power supply:

  • 5 V
OS

OS Support:

  • Linux
  • Free RTOS





Ordering Information

TQMa93x1CA-AA

TQMa93x1CA-AA, Single Cortex®-A55/1.7 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°C

TQMa93x2CA-AA

TQMa93x2CA-AA, Dual Cortex®-A55/1.7 GHz, 8 GB eMMC Flash, 1 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°C

STKa93xxCA-AA

STKa93xxCA (Eval Kit) with TQMa93x2CA-AA, Dual Cortex A55/1,7 GHz, 1 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 2.0 HOST, 1x USB Type C, 2x ETH 10/100/1000, 2x CAN FD, 1x RS485, 1x LVDS, 1x MIPI CSI, 1x DP, 1x Mini PCIe + SIM Card (USB only), WLAN, Temperature sensor, Reset-Button, Micro SD Card interface, Power Supply, 8 GB SD card, Cables, Connectors

Other configurations on request
