NVIDIA® Jetson Orin NX and Orin Nano





Why These Modules?

  • Shared SODIMM form factor for easy scaling across projects
  • Modern AI performance in a small footprint
  • Rich camera and I/O support through carrier boards
  • Flexible power profiles for battery or fanless designs
  • Mature ecosystem, tools, and documentation



Key Features

  • Form factor: 69.6 mm x 45 mm SODIMM for both series
  • Carrier compatibility: Orin NX and Orin Nano share the same carriers
  • Vision ready: Multi-camera MIPI CSI-2 support via carrier boards
  • I/O: PCIe Gen 3, USB 3.x, and NVMe support through carrier designs



Why These Modules?





Typical Applications

  • Mobile robots and AMRs
  • Embedded inspection and defect detection
  • Smart city endpoints
  • Safety analytics
  • Retail analytics
  • Portable vision systems

Carriers and Systems

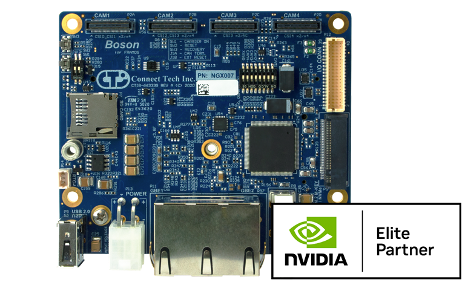

  • Carriers: Hadron-DM, Super Hadron-DM, Lepton (FPD-Link III), Boson-22, Boson for FRAMOS

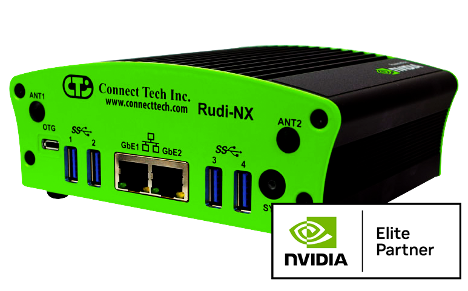

  • Systems: Polaris (rugged IP67), Rudi-NX



Ordering Information

  • Jetson Orin Nano: 4 GB or 8 GB
  • Jetson Orin NX: 8 GB or 16 GB

Contact us for availability, lead time, and recommended carrier boards.



Choose Your Module





Orin NX vs Orin Nano





NVIDIA Jetson Orin NX

Orin NX

Performance for advanced edge AI

  • Higher AI throughput for multi-camera perception and sensor fusion
  • 8-core CPU, 8 GB or 16 GB memory options
  • Best for AMRs, inspection systems, and on-device generative workloads
  • Pick Orin Nano when you need compact AI with tight power and cost targets and still want multi-camera support



NVIDIA Jetson Orin NX

Orin Nano

Efficient AI for compact builds

  • Strong AI per watt for cost and power-sensitive designs
  • 6-core CPU, 4 GB or 8 GB memory options
  • Best for smart cameras, smaller robots, kiosks, and embedded vision
  • Pick Orin NX when your pipeline needs more parallel inference, higher frame rates, or heavier models



Typical Applications









Technical Specifications

FeatureJetson Orin Nano seriesJetson Orin NX series

AI performance (approx.)

Up to ~40 TOPS class

Up to ~100 TOPS class

Typical power envelope

About 7 W to 25 W

About 10 W to 40 W

CPU

6-core Arm

8-core Arm

Memory options

4 GB or 8 GB LPDDR5

8 GB or 16 GB LPDDR5

Camera I/O

Multi-camera via carrier MIPI CSI-2

Multi-camera via carrier MIPI CSI-2

Form factor

69.6 mm x 45 mm SODIMM

69.6 mm x 45 mm SODIMM

Carrier compatibility

Shares carriers with Orin NX

Shares carriers with Orin Nano



Values are typical for selection and may vary by exact module and carrier.
