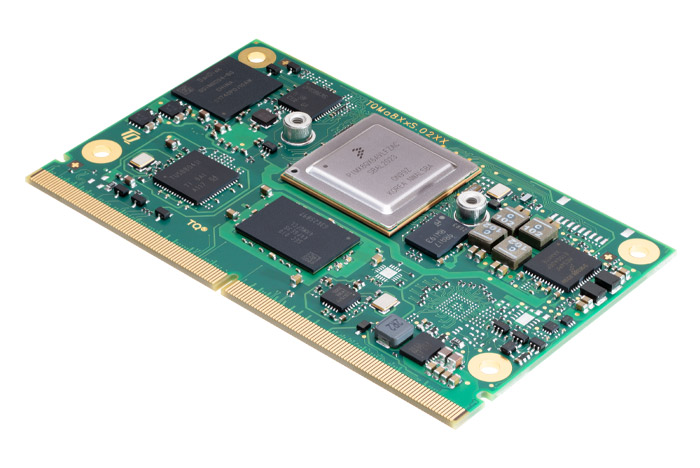

TQMa8XxS Embedded Cortex®-A53 module

Embedded Cortex®-A35 SMARC 2.0/2.1 module based on i.MX8X with high computing power combined with high-speed interfaces

The SMARC-Module TQMa8XxS is based on the processor ARM® Cortex®-A35 core technology. The integrated high performance graphics supports applications with high display requirements. Full access to all signal pins guarantees a very flexible usage and a cost-efficient project development. For various requirements three CPU variants with a different performance and features are available. With a Dual / Quad-Core ARM Cortex™ A35 core and a clock rate up to 4x 1.2 GHz the module provides a balanced ratio between high performance and power dissipation.



Features

  • Arm® Cortex®-A35 based on i.MX8X
  • Graphics with 3D GPU support
  • DSP for audio processing
  • High-speed communication via 2x Gigabit, Ethernet, 1x PCle and 1x USB 3.0 interface
  • Low power consumption (typ. 4 W)
  • Integrated 1x Cortex M4 CPU (Real Time / Security)
TQMa8XxS

Specifications

CPU

CPU/Processor:

  • Cortex®-A35 - Up to 1.2 GHz

CPU variant:

  • i.MX8X Dual
  • i.MX8X Dual Plus
  • i.MX8X Quad Plus
Memory

eMMC:

  • Up to 256 GB

Quad SPI NOR:

  • Up to 256 MB

EEPROM:

  • 0/64-kbit

LPDDR4:

  • Up to 4 GB
Graphics

Graphic interface:

  • 2x LVDS Interface
  • 1x eDP
Communication interfaces

Ethernet:

  • Up to 2x Ethernet 10/100/1000 Mbit

USB:

  • Up to 1x USB 3.0
  • Up to 5x USB 2.0

CAN:

  • Up to 2x CAN FD

Serial Ports:

  • Up to 2x UART RS232
Other interfaces

SD Card:

  • 1x SDIO/MMC

I2C:

  • Up to 2x I2C

SPI:

  • Up to 1x SPI

I2S:

  • Up to 1x I2S

GPIO:

  • 1x GPIO

PCIe:

  • Up to 1x PCIe

MIPI:

  • 1x MIPI CSI

Debug:

  • JTAG
General

Dimensions:

  • 82 mm x 50 mm

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature: -40°C - +85°C

General:

  • Temperature sensor

Power supply:

  • 3.3 V (optional 3.0 V - 5.25 V)

Plug-in System:

  • SMARC 2.0/2.1 Board-to-board plug-in system 314 pins
OS

OS Support:

  • Linux
  • PikeOS™
  • QNX
  • Android on request





Ordering Information

TQMa8XDS-AA

i.MX8XD/typ 1.0 GHz/max 1.2 GHz, 8 GB eMMC-Flash, 1 GB LPDDR4 SDRAM, 64 kB EEPROM, RTC, 2x ETH, with LVDS, -25°C - +85°C

TQMa8XDPS-AA

i.MX8X Dual Plus/typ 1.0 GHz/max 1.2 GH, 8 GB eMMC-Flash, 2 GB LPDDR4 SDRAM, 64 kB EEPROM, RTC, 2x ETH, with LVDS, -25°C - +85°C

TQMa8XQPS-AA

i.MX8X Quad Plus/typ 1.0 GHz/max 1.2 GH, 8 GB eMMC-Flash, 2 GB LPDDR4 SDRAM, 64 kB EEPROM, RTC, 2x ETH, with LVDS, -25°C - +85°C

STKa8XxS-AA

STKa8XxS (Eval Kit) with TQMa8XxS-AA, i.MX8Xx / 1,2 GHz, 2 (1) GB LPDDR4, 8GB eMMC Flash, 64kB EEPROM, 3x RS232, 2 x CAN FD separated, 1x USB 3.0 OTG, 1x USB 3.0 HOST, 1x USB 2.0 HOST, 2x ETH 10/100/1000, 1x Display Port, 2x LVDS/DSI, 1x PCIe, Audio, RTC, Temperature sensor, Reset-Button, SD interface, Power Supply, 4GB SD card, Cables

Starterkit STK8XxS set

The core of the STKa8XxS set is the TQMa8XxS module with a i.MX8X Cortex® A35 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.

Other configurations on request
