HiPrAcc™ NCS280 Altera Agilex I-Series PCIe Card

Hitek Systems

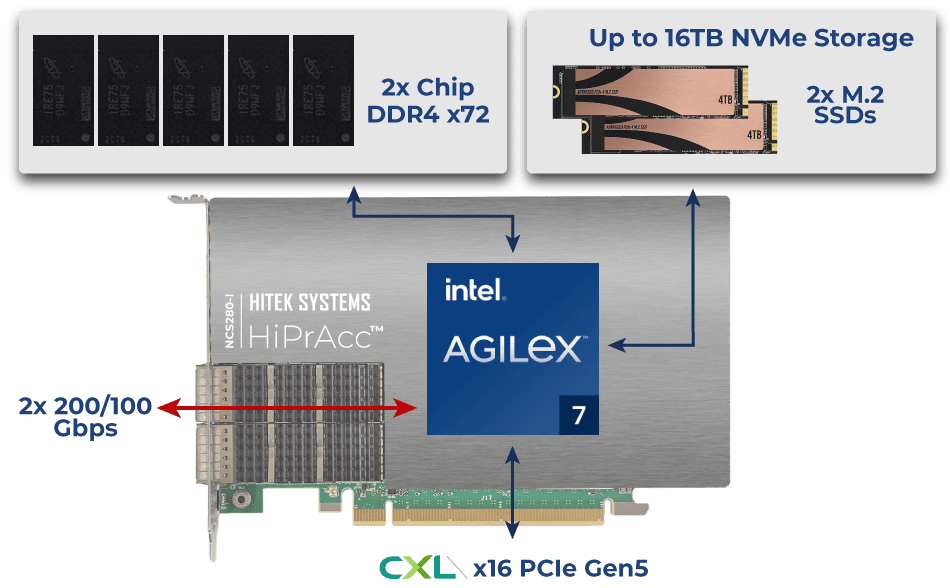

Features of the HiPrAcc NCS280 Altera Agilex I-Series

  • PCIe low profile (half-length, half-height) form factor (6.6" x 2.46")
  • Single-slot design auxiliary power input
  • Agilex 023/019 device support
  • CXL (Compute Express Linnk) and 16x PCIe Gen5 (512Gbps) host interface
  • Up to 2x 200Gbps or 8x 25/50Gbps network support via two QSFD interfaces
  • Support for up to four Gen4 M.2 NVMe SSDs
  • 2 banks of 72-bit DDR4 memory (8GB/16GB)
  • Agilex ARM HPS support with 32GByte eMMC
  • Option for direct GigE network interface to HPS for debug
  • Up to 75W card load with edge power and up to 100W card load with 6-pin PCIe power connector
  • Integrated USB Blaster II, Agilex debug and module monitor interfaces through a single micro-USB connector on PCIe bracket
  • Flexible clocking architecture with support for external synchronization/clock interface
  • Extensive power, voltage and temperature telemetry with SMBus based access for host server board management controller (BMC)

Target Markets

  • Designed for Data Center workloads and scale out architectures
  • Machine learning, network, compute and storage acceleration
  • 5G infrastructure DU and CU
