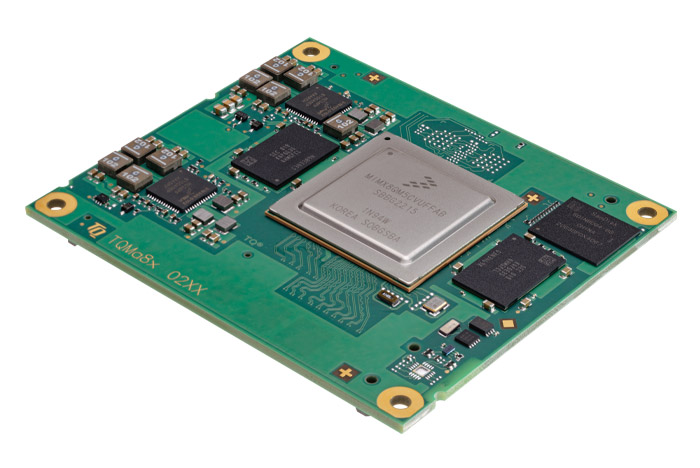

TQMa8x Embedded Cortex®-A53 module

Embedded Cortex®-A53 / A72 module based on i.MX8 with enhanced performance and graphics properties

The Minimodule TQMa8x is based on the processor i.MX8 an Arm® Cortex®-A53/A72 from NXP. The integrated high performance graphics controller supports applications with high display requirements. Full access to all signal pins guarantees flexible applications and cost-effective project development. The CPU is available in three versions with different performance and orientations. With up to two Cortex®-A72 and up to four Cortex®-A53 Cores at the same time, the TQMa8x offers an optimal ratio between performance and power dissipation.



Features

  • Graphic with 4K Support / Quad Core
  • Full chip hardware virtualization
  • High-speed communication via 2x Gbit Ethernet, 2x PCIe, 1x SATA and 1x USB 3.0 interface
  • Low power consumption (typ. 10 W)
  • Integrated 2x Cortex®-M4 CPU (Real Time / Security)
  • 3x CAN FD
  • Integrated security functions
TQMa8x

Specifications

CPU

CPU/Processor:

  • Cortex®-A53 - Up to 1.2GHz
  • Cortex®-A72 - Up to 1.6GHz

CPU variant:

  • i.MX8 Quad Plus A53 + Single A72
  • i.MX8 Quad Plus A53 + Dual A72
Memory

LPDDR4:

  • Up to 8 GB

Quad SPI NOR:

  • Up to 512 MB

eMMC:

  • Up to 64 GB

EEPROM:

  • 0/64-kbit
Graphics

Graphic interface:

  • LCD Interface (HDMI 2.0 / Display-Port 1.3, 2x Dual LVDS, 2x MIPI DSI)
  • Input: 2x MIPI CSI, HDMI 2.0 in
Communication interfaces

Ethernet:

  • Up to 2x Ethernet 10/100/1000 Mbit

USB:

  • Up to 1x USB 3.0 OTG interface
  • Up to 2x USB 2.0 OTG interface

Serial Ports:

  • Up to 5x UART

CAN:

  • Up to 3x CAN FD

SATA:

  • Up to 1x SATA 3.0
Other interfaces

SD Card:

  • Up to 3x SDIO/MMC

PCIe:

  • Up to 3x PCIe 3.0

SPI:

  • Up to 4x SPI
  • Up to 1x QSPI

Audio:

  • Up to 1x SPDIF
  • Up to 2x ESAI
  • Up to 4x SAI

GPIO:

  • Up to 32x GPIO

Debug:

  • JTAG
General

Dimensions:

  • 77 mm x 67 mm

Plug-in System:

  • Board-to-board plug-in system 560 pins 0.5 mm Pitch

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature: -40°C - +85°C

Power supply:

  • 5 V

General:

  • Temperature sensor
OS

OS Support:

  • Linux
  • Android on request
  • QNX on request





Ordering Information

TQMa8QP-AA

TQMa8QP-AA, Quad Plus Cortex®-A53 / 1.2 GHz + Cortex A72 / 1.6 GHz, 8 GB eMMC Flash, 4 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°

TQMa8QM-AA

TQMa8QM-AA, Quad Max Cortex®-A53 / 1.2 GHz + Dual Cortex A72 / 1.6 GHz, 8 GB eMMC Flash, 4 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°

STKa8x-AA

STKa8x (Eval Kit) with TQMa8x-AA, Quad Cortex A53 / 1.2 GHz + 2x Cortex A72 / 1.6 GHz, 4 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x CANFD separated, 1x USB 3.0 OTG, 2x USB 2.0, 2x ETH 10 / 100 / 1000, 1x HDMI-Input, 1x DP, 2x Dual LVDS, 2x MIPI DSI, 2x MIPI CSI, 1x M.2 PCIe, 1x Mini PCIe + SIM, 1x M.2 SATA, 1x SIM CARD (CPU), 1x MLB, Audio, Temperature sensor, Reset-Button, SD interface, Power Supply, 4 GB SD card, Cables

Starterkit STKa8x set

The core of the STKa8x set is the TQMa8x module with a Quad Cortex®-A53 CPU and a Dual A72 CPU. The components contained in the starter kit constitute a modular system enabling you to develop your own product ideas. Development of graphic interfaces can be started immediately using the prepared combination of closed display unit and starter kit that are matched to each other. To develop your own hardware you can use the certified and qualified circuit components of the starter kit in your own designs.

Other configurations on request
