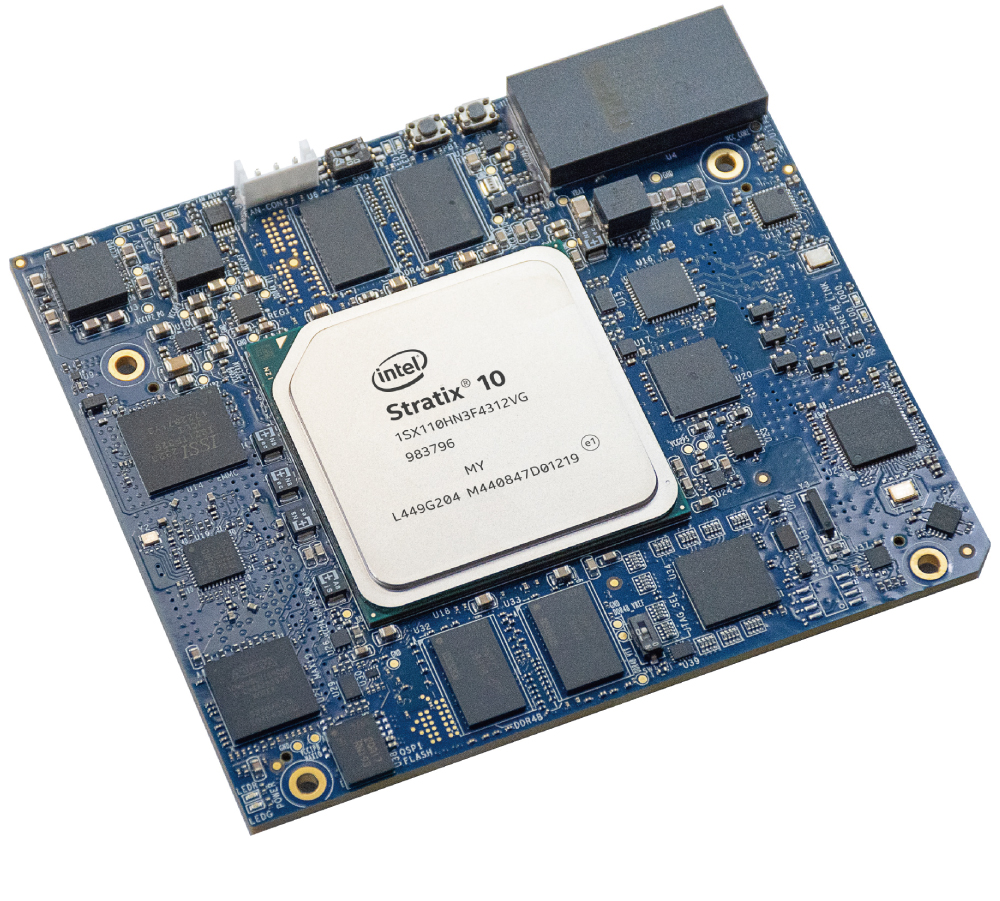

Terasic Titan S10 SOM

Terasic Titan S10 SOM

The new Terasic Titan S10 SOM (System-on-Module) is based on the Intel® Stratix® 10 SX1100 FPGA. This SOM has a 1.1M logic element FPGA with an integrated quad-core ARM Cortex-A53 processor, two 4G byte banks of on-board DDR4 memory, Board Management Controller and power management resources. This Titan S10 SOM incorporates high-end FPGA features and performance which significantly outperforms mid-range Arria-10 FPGA SOMs at a comparable price.









Terasic Titan S10 SOM

The industrial temperature grade Titan S10 SOM is available with either FMC or FMC+ board-to-board connectors; the FMC+ version providing an additional 8 transceivers (32 total) and 40 LVDS IOs (154 total). With the Titan S10 SOM development kit, the S10 SOM can be used for evaluation, prototyping and initial system development.  The SOM development kit’s full height, ¾ length PCIe carrier board adds a PCIe Gen3 x16 edge connector, two low-latency QSFPDD ports, dual RJ-45 Gigabit Ethernet, USB Blaster, USB 3.0 and HPS USB-UART interfaces.







The SOM’s FPGA resources can be customized to optimally accelerate complex algorithms saving both cost and power in medical, imaging processing and signal processing applications. Terasic provides comprehensive set of documentation including user guides, FPGA design examples, Linux builds and software examples to help the user get started quickly. Using this Titan S10 SOM reduces costs, resources and development time while providing a secure, flexible, and low-risk path to a successful system design.



Key Features

  •  1.1MLE Stratix® 10 FPGA with integrated quad-core 1.5GHz 64-bit ARM Cortex-A53 processor
  • Two banks of 4G bytes of DDR4 64-bit 2400 MT/s, 512Mbit of QSPI flash and 32GB of eMMC
  • On-board power regulators, BMC, RTC, Temperature Sensor and EEPROM
  • SOM interfaces: FMC or FMC+, dual Gigabit Ethernet PHYs, USB 2.0 OTG and FX3 USB 3.0
  • Carrier Board interfaces: Two QSPFDD connectors, two RJ45 gigabit ethernet connectors, USB Blaster II, PCIe Gen3 x16 edge connector, 6-pin ATX power connector, USB Type-C connectors

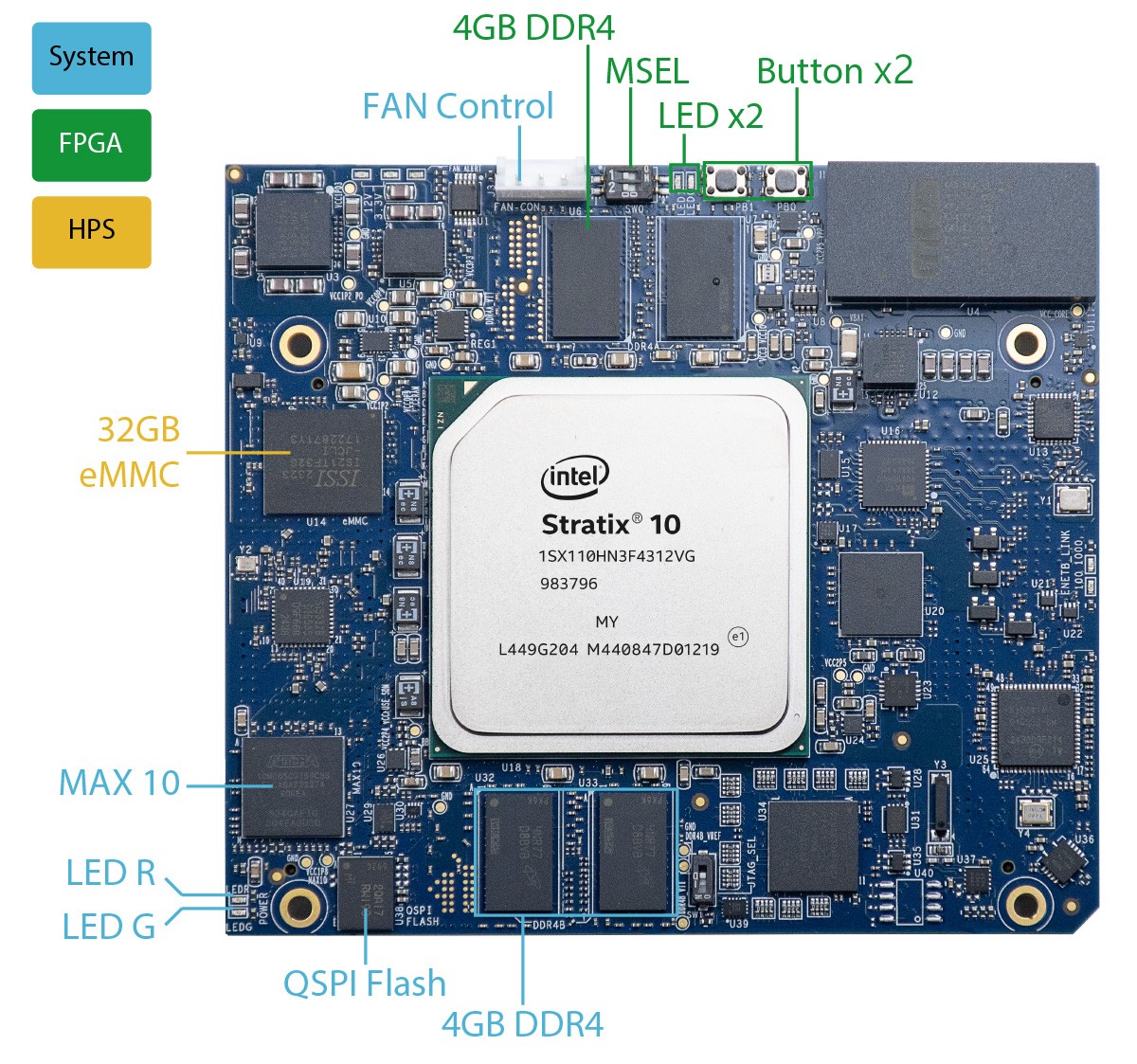

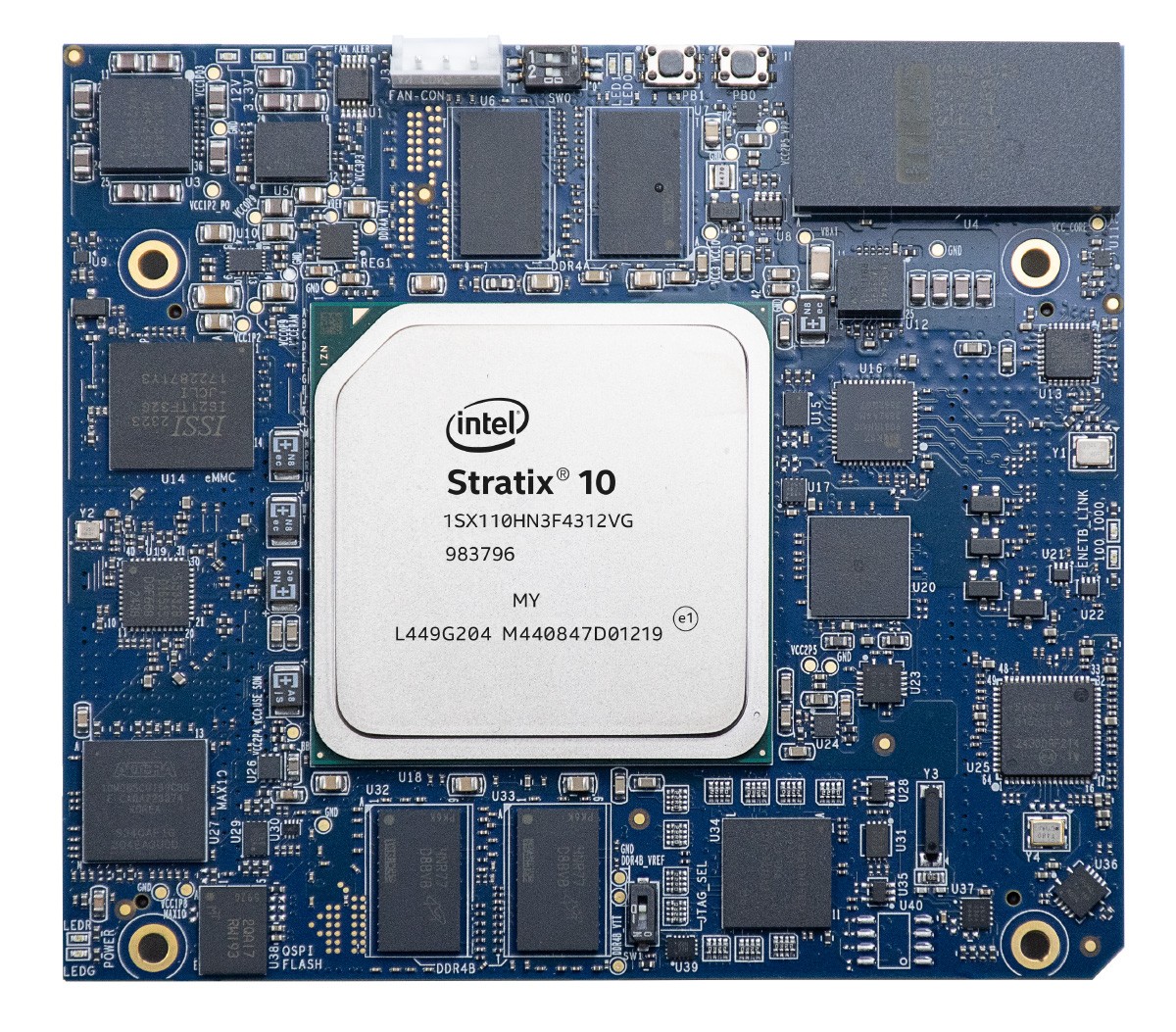

Titan S10 SOM Layout

Terasic Titan S10 SOM

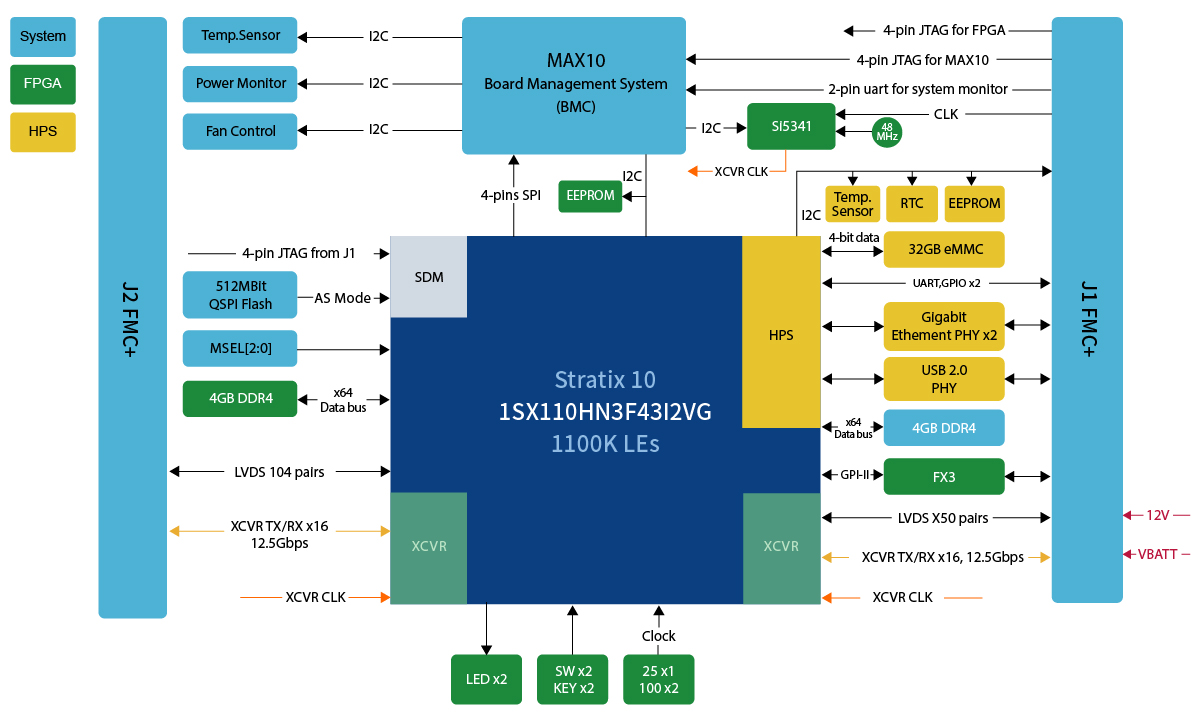

Titan S10 SOM Block Diagram

Terasic Titan S10 SOM Block Diagram

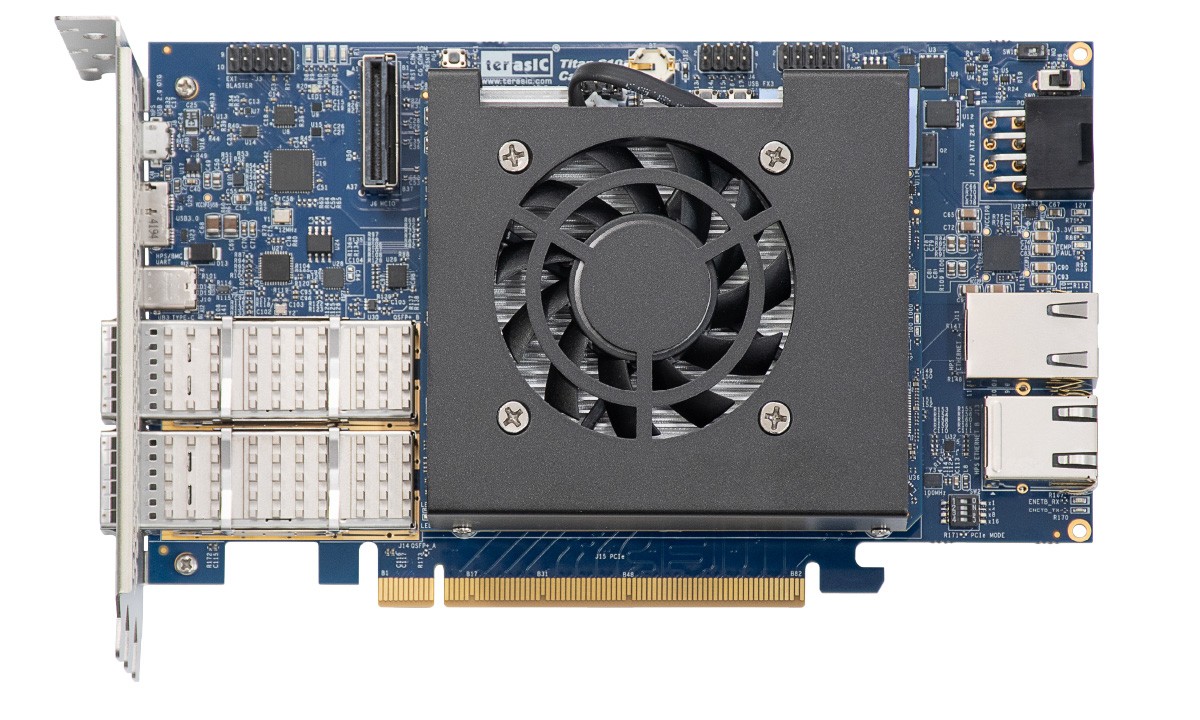

Titan S10 SOM Development Kit

Terasic Titan S10 SOM Development Kit

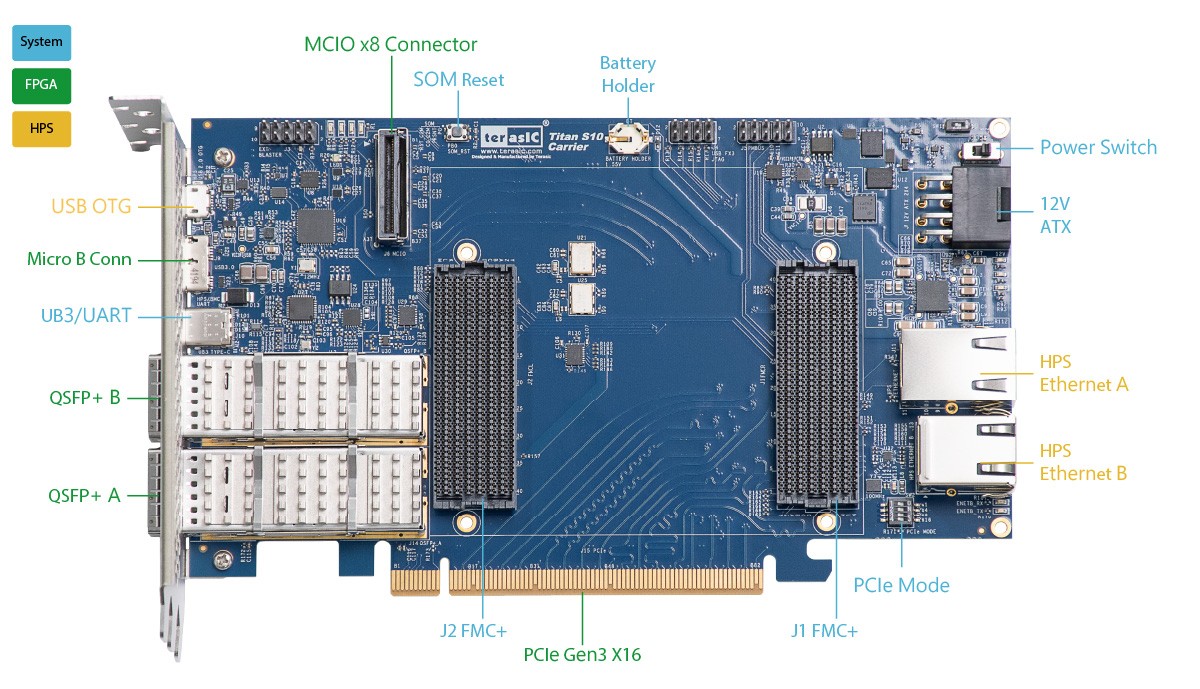

Titan S10 SOM Carrier Board Layout

Terasic Titan S10 SOM Carrier Board





Titan S10 SOM Carrier Board Key Features

  • Provides 12V DC to Titan S10 via FMC+ board-to-board connectors
  • PCIe Gen3 16 edge connector
  • x8 MCIO connector
  • Two QSFPDD connectors
  • Dual Gigabit Ethernet interfaces
  • USB 3.0 and USB-UART ports
  • Onboard USB Blaster II

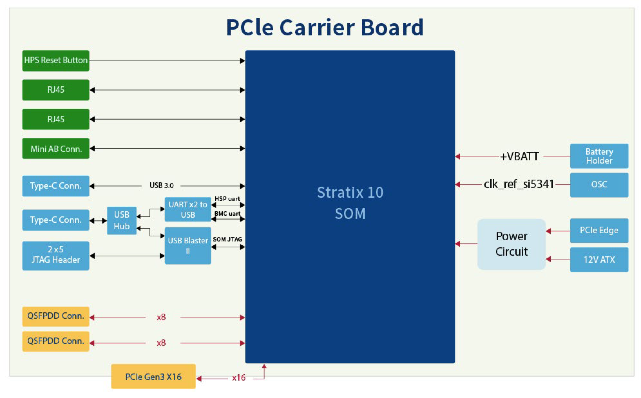

Titan S10 SOM Carrier Board Block Diagram

Terasic Titan S10 SOM Carrier Board Block Diagram
