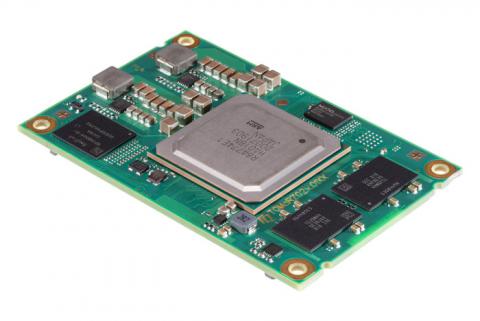

TQMaRZG2x Embedded Cortex®-A53/A57 module

Based on RZ/G2 with enhanced performance and graphics properties

The TQMaRZG2x Embedded Module is a powerful solution for embedded computing engineers. It's based on the RZ/G2 processor from Renesas, featuring a combination of Cortex-A53 and Cortex-A57 cores. This module excels in performance and graphics capabilities, supporting 4K graphics with a quad-core setup. It boasts LPDDR4 with ECC support and enables high-speed communication through Gbit Ethernet, PCle, and USB 3.0 interfaces. Integrated security functions ensure data safety, making it an ideal choice for a wide range of applications.

Features

  • High-performance Cortex-A53/A57 processor
  • 4K graphics support with a quad-core setup
  • LPDDR4 with ECC support
  • High-speed communication interfaces
  • Integrated security functions

Specifications

CPU
  • CPU/Processor:
    • Cortex®-A53 - Up to 1,2GHz
    • Cortex®-A57 - Up to 1,5GHz
  • CPU variant:
    • RZ/G2M Quad A57 + Dual A53
    • RZ/G2N Dual A57
    • RZ/G2H Quad A53 + Quad A57
Memory
  • LPDDR4: Up to 8 GB
  • EEPROM: 0/64-kbit
  • eMMC: Up to 64 GB
  • Quad SPI NOR: Up to 256 MB
Graphics
  • Graphics: LCD Interface (1x HDMI 2.0, 1x LVDS, 1x Digital RGB)
  • Camera: 2x MIPI CSI2
Communications Interfaces
  • Ethernet: 1x Ethernet 10/100/1000 Mbit
  • CAN: Up to 2x CAN FD
  • Serial Ports:
    • Up to 6x UART
    • Up to 5x H-UART
  • USB:
    • Up to 1x USB 3.0 OTG interface
    • 2x USB 2.0 high-speed OTG interface
Other Interfaces
  • SD Card: Up to 4x SDIO
  • PCIe: Up to 2x PCIe 2.0
  • I2C: Up to 7x I2C
  • SPI:
    • Up to 4x SPI
    • Up to 1x QSPI
  • I2S: Up to 10x I²S
  • GPIO: Up to 32x GPIO
  • SATA: Up to 1x SATA (only RZ/G2N)
General
  • Temperature sensor
  • Dimensions: 77 mm x 50 mm
  • Temperature range:
    • Standard temperature range: -25°C…+85°C
    • Extended temperature: -40°C…+85°C
  • Power supply: 5 V
  • Plug-in System: Board-to-board plug-in system 440 pins 0.5 mm Pitch (TBD)
OS
  • Linux
  • QNX on request
  • Android on request

Ordering Information

TQMaRZG2N-AA

  • TQMaRZG2N-AA, Dual Cortex®-A57/1.5 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°C

TQMaRZG2M-AA

  • TQMaRZG2M-AA, Quad Cortex®-A53/1.2 GHz + Dual Cortex®-A57/1.5 GHz, 8 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C...+85°

TQMaRZG2H-AA

  • TQMaRZG2H-AA, Quad Cortex®--A53/1.2 GHz + Quad Cortex®--A57/1.5 GHz, 8 GB eMMC Flash, 2 GB LPDDR4 (ECC optional), 64 kB EEPROM, RTC, -25°C...+85°

STKaRZG2x-AA

  • STKaRZG2x (Eval Kit) with TQMaRZG2x-AA, Quad Cortex®-A53/1.2 GHz + 2x Cortex®-A57/1.5 GHz, 2 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x CAN separated, 2x USB 3.0 HOST, 2x USB 2.0, 1x ETH 10/100/1000, 1x HDMI, 1x Digital RGB, 1x LVDS, 2x MIPI CSI, 1x Mini PCIe + SIM Card, 1x M.2 SATA/PCIe, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 4 GB Micro SD Card, Cables
