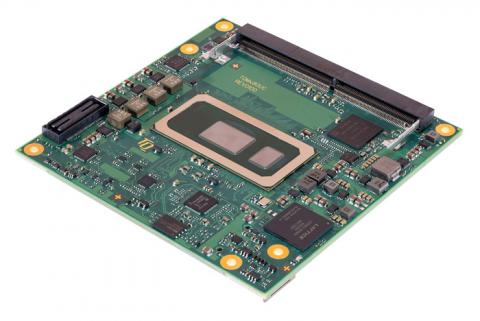

TQMx80UC COM Express® Compact Type 6 Module

8th Generation Intel® Core™ Processor



The TQ COM Express® Compact Module TQMx80UC is a high-performance embedded solution designed for demanding industrial applications. Powered by 8th Generation Intel® Core™ processors, including Core™ i3, i5, i7, Celeron, and Pentium variants, this compact module offers exceptional CPU and graphics performance. With up to four cores and clock speeds of up to 4.6 GHz, it is well-suited for applications such as robot control, industrial automation, and instrumentation.



One of the standout features of the TQMx80UC is its support for three independent displays, each capable of delivering 4K resolution. This makes it ideal for applications that require detailed visual output. The module also boasts fast DDR4-2400 memory and ample cache, enhancing overall system performance.



In terms of connectivity, the TQMx80UC offers impressive bandwidth with features like 9x PCI Express, 2x SATA Gen3, 4x USB 3.1 Gen. 2, and Gigabit Ethernet with IEEE1588 support, making it well-suited for data-intensive tasks.



With a compact form factor and a wide temperature range from -40°C to +85°C, the TQMx80UC is a reliable and versatile choice for FPGA engineers working on industrial-grade applications that demand both computing power and graphics performance.

Features

  • High-Performance 8th Gen Intel® Core™ Processors: The module is powered by 8th Generation Intel® Core™ processors, offering robust CPU capabilities for demanding industrial applications.

  • Multiple Independent Displays: With support for three independent displays, each capable of 4K resolution, it provides versatile visual output options for a range of applications.

  • Enhanced Connectivity: The module offers a range of connectivity options, including USB 3.1 Gen 2, PCIe Gen 3 lanes, SATA Gen3, and Gigabit Ethernet with IEEE1588 support, ensuring efficient data transfer and communication.

  • Flexible Memory Options: It supports DDR4 SO-DIMM memory with capacities ranging from 8 GB to 64 GB, allowing for memory configurations tailored to specific application requirements.

  • Wide Temperature Range: Designed to operate reliably in harsh environments, the module offers an extended temperature range from -40°C to +85°C, making it suitable for rugged industrial use.

Specifications

CPU
  • 8th Generation Intel® Core™ Processor
  • Core™ i3-8145UE (2x 2.2/3.9 GHz, 4 MB, 15 W)
  • Core™ i7-8665UE (4x 1.7/4.4 GHz, 8 MB, 15 W)
  • Core™ i5-8365UE (4x 1.6/4.1 GHz, 6 MB, 15 W)
  • Celeron® 4305UE (2x 2.0 GHz, 2 MB, 15 W)
Memory
  • DDR4 - 8 - 64 GB
  • EEPROM - 32kbit
  • eMMC - Up to 128 GB
Graphics
  • 1x embedded DP with up to 4K @ 60 Hz
  • 1x LVDS Interface (18/24-bit, Single/Dual Channel)
  • 2x Digital Display Interface/DP++ with up to 4K @ 60 Hz
  • Intel® UHD Graphics 620
Communications Interfaces
  • Ethernet - 1 Gigabit Ethernet (Intel i219)
  • USB - 4x USB 3.1 | 8x USB 2.0
  • Serial Port - 2x Serial Ports
Other Interfaces
  • PCIe - 1x PEG port w/ PCIe Gen 3
  • LPC - LPC bus
  • I2C
  • SMBus
  • SPI - SPI (for external UEFI BIOS flash)
  • UART - 2x UART (Rx/Tx) (4-wire optional)
  • GPIO - 8x GPIO through TQ-flexiCFG
  • SATA - 2x SATA Gen 3
General
  • Dimensions - 95mm x 95mm
  • Plug-in System - COM Express Compact, Type 6
  • Temperature range - Standard temperature: 0°C…+60°C (HE versions)
  • Power supply - 8.5 ... 20 V
  • Power consumption - Configurable TDP from 12.5 W to 25 W
OS
  • Windows 10 / Windows 10 IoT Enterprise
  • Windows 11 (restricted support)
  • Linux

Ordering Information

TQMx80UC-AA

  • Intel® Core™ i7-8665UE (4x 1.7/4.4 GHz, 8 MB, 15 W), eDP display, 32 GByte eMMC, Standard Temp. 0 °C...+60 °C

TQMx80UC-AB

  • Intel® Core™ i5-8365UE (4x 1.6/4.1 GHz, 6 MB, 15 W), eDP display, 32 GByte eMMC, Standard Temp. 0 °C...+60 °C

TQMx80UC-AC

  • Intel® Core™ i5-8365UE (4x 1.6/4.1 GHz, 6 MB, 15 W), eDP display, 32 GByte eMMC, Standard Temp. 0 °C...+60 °C

TQMx80UC-AD

  • Intel® Core™ i3-8145UE (2x 2.2/3.9 GHz, 4MB, 15W), LVDS display, TPM, 8 GByte eMMC, Standard Temp. 0 °C...+60 °C

TQMx80UC-AE

  • Intel® Celeron® 4305UE (2x 2.0/2.0 GHz, 2 MB, 15 W), eDP display, 8 GByte eMMC, Standard Temp. 0 °C...+60 °C
