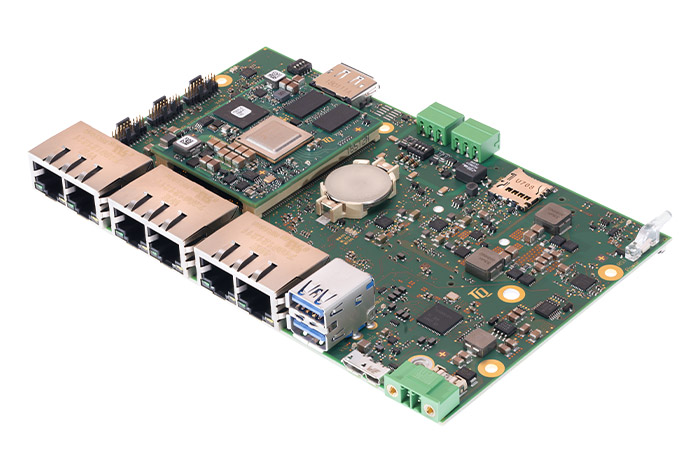

MBLS1028A-IND Single Board Computer

Single Board Computer (SBC) based on TQMLS10128A as a high speed platform with 4 Port TSN Gigabit Ethernet Switch for Real-time demands

The MBLS1028A-IND set is delivered with the TQMLS1028A module with a Cortex®-A72 CPU from NXP. The components contained in the single board computer constitute a modular system enabling you to develop your own product ideas. To develop your own hardware you can use the certified and qualified circuit components of this platform in your own designs. For this platform, there is also a housing solution available to enable use as a complete system.



Features

MBLS1028A-IND
  • 1x TSN Ethernet 1 Gbit
  • 1x 4 Port TSN Gbit Ethernet Switch
  • Graphics with 3D GPU and 4K support
  • Extended temperature range
  • Low power consumption
  • Security functions

Specifications

CPU

CPU/Processor:

  • Cortex®-A72 - Up to 1,3GHz
  • CPU variant:
  • LS1028A Dual Core
  • LS1027A Dual Core
  • LS1018A Single Core
  • LS1017A Single Core
Memory

DDR4:

  • DDR4-SDRAM: Up to 8 GB

eMMC:

  • Up to 64 GB

Quad SPI NOR:

  • Up to 512 MB

EEPROM:

  • 0/256 kbit
Graphics

Graphic interface:

  • eDP/DP Phy
Communications Interfaces

Ethernet:

  • 1x 4 Port TSN Ethernet Switch up to 1 Gbit
  • 1x TSN Ethernet 1 Gbit
  • 1x Ethernet 1 Gbit

USB:

  • 1x USB 3.0
  • 1x USB 3.0 OTG
  • USB-Debug (RS232)

CAN:

  • 2x CAN

SATA:

  • 1x SATA 3.0 (M.2)
Other Interfaces

PCIe:

  • 1x SIM Card (mini PCIe)

SD Card:

  • 1x Micro SD card socket
  • 1x SDIO/MMC

SPI:

  • Up to 2x SPI

I2C:

  • Up to 1x I2C

Debug:

  • JTAG
General

General:

  • Temperature sensor

Dimensions:

  • 160 x 100 mm

Power supply:

  • 16 - 28 V DC

Temperature range:

  • Extended temperature: -40°C - +70°C
OS

OS Support:

  • Linux







Ordering Information

MBLS1028A-IND-AA
MBLS1028A-IND-AA, TQMLS1028A, Dual Cortex®-A72/1.3 GHz, 64 MB Q-SPI NOR Flash, 1 GB DDR4, 64-kB EEPROM, -40°C…+70°C, 2x USB 3.0, 1x USB 3.0 OTG, 2x ETH 10/100/1000, 1x 4 Port TSN Switch, 1x eDP, 2x CAN, 1x Mini PCIe (SIM-Card), 1x SATA M.2, USB-Debug Interface, JTAG RTC, Temperature sensor, Reset-Button, SD-Card interface
MBLS1028A-AA-KIT

Single Board Computer with:

MBLS1028A-IND-AA, TQMLS1028A-AA, Dual CortexR-A72/1.3 GHz, 64 MB Q-SPI NOR Flash, 2 GB DDR4, 32-kB EEPROM, RTC

Mainboard Features:

2x USB 3.0, 1x USB 3.0 OTG,

2x ETH 10/100/1000, 4x ETH 10/100/1000 (4 Port TSN Switch),

1x eDP, 2x CAN galv. Isolated,

1x Mini PCIe (SIM-Card), 1x SATA M.2, JTAG,

SD-Card interface, USB-Debug Interface, Reset-Button,

Temperature sensor, -40°C…+70°C Including passive cooling solution

Other variants on request
