TQMa67xx Embedded Cortex®-A53 module

Embedded Cortex®-A53 module based on the AM67xx MPU from TI. With AI, Vision ISP and 3D GPU.

The TQMa67xx embedded module is based on the AM67xx (Quad /Dual Cortex A53) processor family from Texas Instruments. This module is designed in such a way that the pin-compatible processors are used on one module design. The TQMa67xx is ideal for applications that require extended computing power and scalable graphics performance or artificial intelligence. The AM67xx family offers Artificial Intelligence, Vision ISP and a 3D GPU as well as a variety of industrial interfaces. These include 2x Gigabit Ethernet switches with TSN support. They also have various interfaces such as USB2.0, CAN-FD, UART and 4x CSI for connecting up to 4 cameras. Multidisplay with up to 3 displays is possible and up to 2x SerDes for (PCIe/ USB + SGMII) round off this powerful CPU family.



Features

  • Quad / Dual Cortex A53 up to 1.4 GHz
  • 3x Display LVDS, DSI & RGB
  • Featuring AI, Vision ISP & 3D GPU
  • High-speed communication via 2x Gbit Ethernet switch (TSN), 4 x CAN FD, 2x USB 2.0
  • Up to 2x SERDES (PCIe and USB shared with SGMII)
  • Integrated security functions
  • Low power consumption (3-5 Watt)

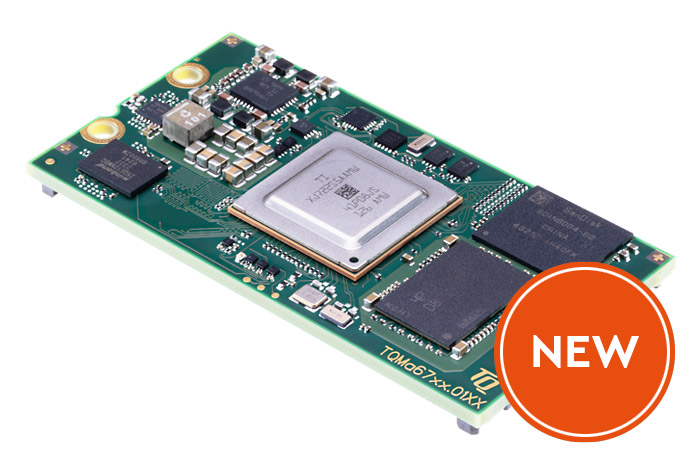

TQMa67xx - New

Specifications

CPU

CPU/Processor:

  • AM67x

CPU variant:

  • AM67Ax
  • AM67Dx
  • AM67x

Max. CPU frequency:

  • 1.4GHz
Memory

LPDDR4:

  • Up to 8 GB

NOR Flash:

  • Up to 256 MB (TBD)

eMMC:

  • Up to 128 GB (256 GB 3D NAND)

EEPROM:

  • 0/64-kbit
Graphics

Display:

  • 1x DSI
  • 1x RGB (24 bit)
  • 1x LVDS

Graphic interface:

  • 3D GPU (8G FLOPFS)

Camera interface:

  • 1x CSI (Rx 4x4L, Tx 1x4L)
Communications Interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet switch (TSN)

USB:

  • Up to 2x USB 2.0 interface

CAN:

  • Up to 4x CAN FD
Other Interfaces

PCIe:

  • Up to 2x SerDes shared with PCIe, USB 3.0 or SGMII

SD Card:

  • Up to 2x SDIO

I2C:

  • Up to 6x I2C

SPI:

  • Up to 5x SPI
  • Up to 1x OSPI

GPMC:

  • Up to 1x GPMC

PWM:

  • Up to 3x PWM

Audio:

  • 5x McASP

UART:

  • Up to 9x UART
General

Dimensions:

  • 64 x 34 mm

Power supply:

  • 3.3 V

Power consumption:

  • 3 - 5 Watt

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature: -40°C - +85°C

Plug-in System:

  • Board-to-board plug-in system 440 pins 0.5 mm Pitch
OS

OS Support:

  • Linux
  • Others on request





TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
