Canon LI7060 HDR CMOS Sensor

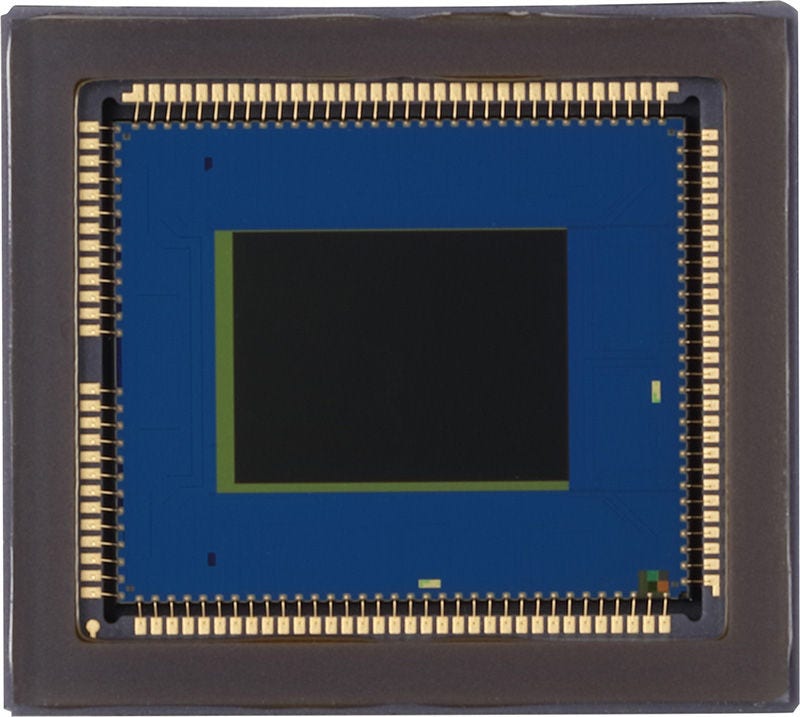

- Canon LI7060 Front
High-Dynamic Range For More Usable Data
Canon’s newly developed 2.8 MP LI7060 CMOS sensor is equipped with an HDR drive function that achieves a wide 120 dB range at low noise levels. This wide range results in a greater ability to extract usable information even where there is a substantial difference between the lightest and darkest areas of an image. Even when using the sensor during normal drive operation, the sensor can achieve a dynamic range of 75 dB.
With a diagonal size of 1/2.32 inches (7.75 mm), the LI7060 features approximately 2.8 million effective pixels (1936 x 1456), a pixel size of 3.2 μm x 3.2 μm and a frame rate of 60 fps (30 fps during HDR drive operation). The sensor will be compatible with the MIPI CSI-2 interface used by consumer-oriented cameras for a wide variety of purposes.
Achieving High Image Quality in Extreme Temperatures
In high temperature conditions, the increase in dark current noise adversely affects the quality of the image. The Canon LI7060 sensor is equipped with functionality that mitigates dark current due to increased temperatures, Canon’s sensor is able to maintain high image quality while operating in environments with extreme temperatures ranging from -40°C to 105°C, or -40°F to 221°F.
Canon LI7060 CMOS Sensor Expands Possibilities Across Industries
For high-dynamic range imaging and extreme temperature applications, the Canon LI7060 CMOS Sensor is appropriate for:
- Automotive
- Camera OEM’s
- Defense
- General Mfg
- Intelligent Traffic Systems
- Machine Vision
- R&D, Scientific
- Robotic Vision
- Security & Surveillance
Technical Specifications
Technical Specifications
| Filter Type | RGB |
|---|---|
| Sensor Size (diagonal) | 1/2.32” (7.75mm) |
| Number of Effective Pixels | 1936h x 1456v |
| Pixel Size | 3.2μm x 3.2μm |
| Shutter | Rolling Shutter |
| Dynamic Range – HDR | 120 dB |
| Dynamic Range – Normal | 75 dB |
| Maximum Frame Rate – HDR | 30 fps |
| Maximum Frame Rate – Normal | 60 fps |
| Operating Temperature | -40°C to 105°C (-40°F to 221°F ) |
| Output Format | MIPI CSI-2 |
