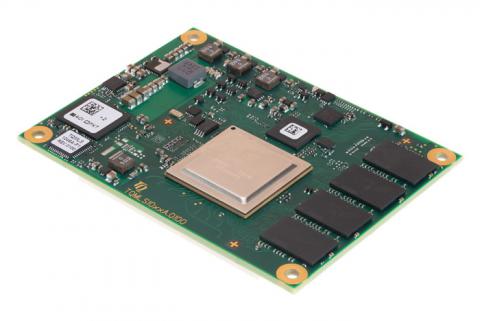

TQMLS1088A Embedded Octal Cortex-A53 Module

Based on Arm® Octal Cortex®-A53 and NXP LS1088A processor

The TQMLS1088A is an embedded Octal Cortex-A53 module based on the LS1088A processor from NXP, designed for various applications, including networking and industrial automation. It features QorIQ Trust Architecture and Arm TrustZone for advanced security, making it suitable for secure data processing. With support for IEEE 1588 and QUICC Engine, it ensures precision timing and efficient communication. Despite its high-speed communication capabilities via Gigabit Ethernet, PCIe, and USB 3.0 interfaces, it maintains low power consumption. Additionally, its extended temperature range and compact dimensions enhance its suitability for diverse environments.

Features

  • Octal Cortex-A53 LS1088A processor for robust performance.
  • QorIQ Trust Architecture and Arm TrustZone for enhanced security.
  • Support for IEEE 1588 and QUICC Engine for precise timing.
  • Low power consumption with high-speed communication interfaces.
  • Extended temperature range and compact form factor for versatile deployment.

Specifications

CPU
  • CPU/Processor: Cortex®-A53 - Up to 1,6GHz
  • CPU variant: LS1088A Octal Core
Memory
  • DDR4: DDR4-SDRAM: Up to 8 GB
    • ECC protection (optional)
  • EEPROM: 0/64-kbit
  • Quad SPI NOR: Up to 512 MB
  • eMMC: Up to 64 GB
Communications Interfaces
  • Ethernet:
    • Up to 10x Ethernet 10/100/1000 Mbit
    • Up to 2x Ethernet 10 Gbit
  • USB: Up to 2x USB 3.0 high-speed HOST interface
  • Serial Ports: Up to 4x UART
Other Interfaces
  • SD Card: Up to 1x SDIO/MMC
  • SPI: Up to 1x SPI
  • SATA: Up to 1x SATA 3.0
  • PCIe: Up to 3x PCIe 3.0
  • I2C: Up to 4x I2C
General
  • Dimensions: 80 mm x 60 mm
  • Plug-in System: Board-to-board plug-in system 420 pins
  • Temperature range: Extended temperature: -40°C…+85°C
  • Temperature sensor
  • Voltage Monitoring
  • Power supply: 5 V
OS
  • Linux
  • VxWorks on request

Ordering Information

TQMLS1088A-AA

  • LS1088/1.4 GHz, 128 MB QSPI NOR Flash, 8 GB eMMC, 2 GB DDR4+ ECC, 64 kB EEPROM, RTC, -40°C...+85°C

STKLS10xxA-AA

  • STKLS10xxA (Eval Kit) mit TQMLS10xx-AA, LS10xxA/1.6 GHz, 2 GB DDR4, 128 MB QSPI NOR Flash, 8 GB eMMC, RTC, 64 kB EEPROM, 1x RS232, 1x RS485, 1x SATA M.2, 1x CAN 2.0 B gtr., 3x USB 2.0 HOST, 1 x USB 3.0 OTG , 10x ETH 10/100/1000, 2x ETH 10 Gbit, Temperatursensor, 1x PCIe , 2x Mini PCIe (1x SIM Card), Reset-Button, SD-Interface, Power Supply, SD-Card, Accessoires, Cable, Heatspreader, Heatsink




TQ Embedded is known for:

  • Precision German engineering, now with a North America presence
    • Robust industrial products with support
  • Widest portfolio of embedded processing architectures: ARM, x86, PowerPC
  • Comprehensive in-house process and facilities for true long-life availability
  • Modules with full signal availability (ALL signals available, not just selective groups)
  • In-house full control: design, manufacturing, specialized adaptations
  • Robust baseboard options, production-ready for mounting their SOM products
