Canon LI5070SA CMOS Sensor

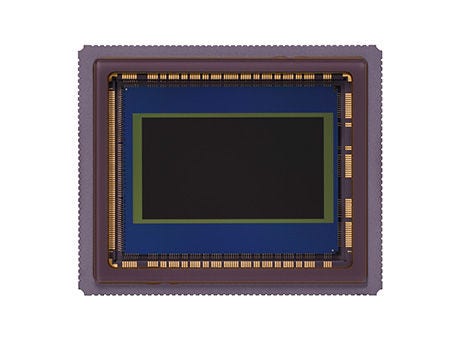

- LI5070 Front

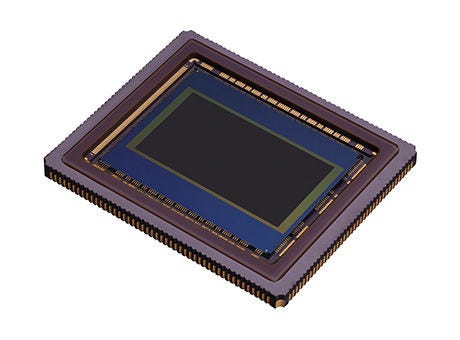

- LI5070 Side
LI5070SA’s 4K 10 MP global shutter sensor is designed for high-end security and cinema cameras.
The Canon LI5070SA CMOS Sensor, available in RGB, offers 10M pixels in a Super35 format. It’s global shutter, square 6.4μm x 6.4μm pixel arrangement and professional-grade imaging delivers performance suitable for high-end security and cinema cameras.
Technical Specifications
| Resolution | 10 MP |
|---|---|
| Pixel count | 4,288×2,398 |
| Pixel pitch | 6.4μm |
| Sensor Size | 27.4 x 15.3 mm |
| Shutter Type | Global |
| Dark Random Noise | 2.0 e-rms @ 18 dB |
| Frame rate | 60 fps |
| Color filter options | RGB |
| Sensitivity | 90,000 e/lx/sec |
