TQMxE41M COM Express® Compact Embedded Module

COM Express Mini Module with Intel Atom® processors x7000E & x7000RE Series, Intel® Core™ i3 processors, and Intel® Processors N Series



The COM Express Mini module TQMxE41M is available with a wide variety of processors in the power range 6 W to 15 W TDP. It combines high CPU and graphics performance (incl. increased AI acceleration) with a variety of high-speed interfaces such as 2.5 Gigabit Ethernet, 4x PCIe, 2x USB 3.2 and SATA in a very compact design. The high system performance is supported by the latest LPDDR5-4800 memory and up to 256 GB Industrial iNAND eMMC. Many other interfaces ensure easy connection of numerous peripheral components.



The new generation of CPU microarchitecture and the integrated Intel UHD Graphics Gen12 with up to 32 execution units, both from the 12th generation Intel Core processors, set new standards in the areas of CPU single-thread/multi-thread performance as well as multimedia and AI. For the first time in this performance segment, AVX256 and advanced AI instruction sets (VNNI) are also supported, providing fast AI inferencing and media transcoding. Together with the extended security features including TPM 2.0 support, the module is particularly well suited for applications in healthcare, IoT, industry/robotics, retail and video & conferencing.



Features

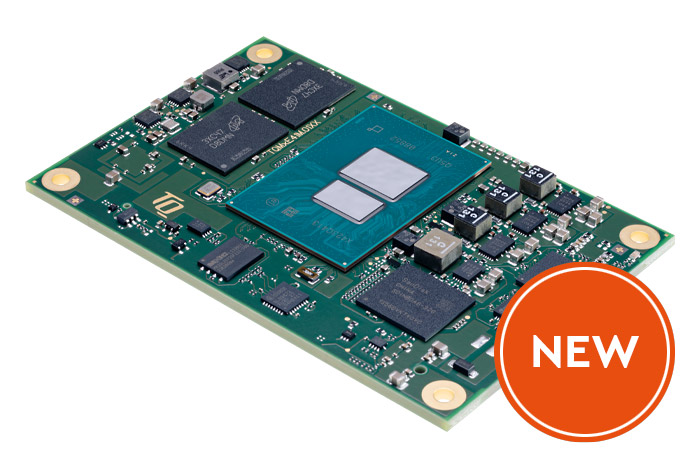

TQMxE41M - New
  • Codename: Alder Lake-N & Amston Lake
  • Intel Atom® processors x7000E/RE Series, Intel® Core™ i3 processors, and Intel® Processors N Series
  • One common design from dual-core up to 8-core
  • High efficiency with 6 W to 15 W processor power
  • Up to 32 GB LPDDR5, with In-Band-ECC (option)
  • Up to 256 GB eMMC
  • Intel® AVX256 and Intel® Deep Learning boost support
  • 2.5 Gigabit ETH, high-speed PCIe and IO
  • Extended security features
  • Extended temperature range and "Industrial Use Conditions (24/7)" available
  • CAN (Linux) (assembly option)





Specifications

CPU

CPU/Processor:

  • Intel® Core™ i3-N305 (8-Core, 1.8/3.8 GHz, 32 EU, 15 W TDP, PC-Client)
  • Intel® Core™ i3-N305* (8-Core, 1.0/3.8 GHz, 32 EU, 9 W cTDP, PC-Client)
  • Intel Atom® x7425E (4-Core, 1.5/3.4 GHz, 24 EU, RT, 12 W TDP, Embedded)
  • Intel Atom® x7213E (2-Core, 1.7/3.2 GHz, 16 EU, RT, 10 W TDP, Embedded)
  • Intel Atom® x7211E (2-Core, 1.0/3.2 GHz, 16 EU, RT, 6 W TDP, Embedded)
  • Intel® Processor N200 (4-Core, 1.0/3.7 GHz, 32 EU, 6 W TDP, PC-Client)
  • Intel® Processor N97 (4-Core, 2.0/3.6 GHz, 24 EU, 12 W TDP, PC-Client)
  • Intel® Processor N50 (2-Core, 1.0/3.4 GHz, 16 EU, 6 W TDP, PC-Client)
  • Intel Atom® x7835RE (8-Core, 1.3/3.6 GHz, 32 EU, RT, 12 W TDP, Industrial)
  • Intel Atom® x7433RE (4-Core, 1.5/3.4 GHz, 32 EU, RT, 9 W TDP, Industrial)
  • Intel Atom® x7213RE (2-Core, 2.0/3.4 GHz, 16 EU, RT, 9 W TDP, Industrial)
  • Intel Atom® x7211RE (2-Core, 1.0/3.2 GHz, 16 EU, RT, 6 W TDP, Industrial)
Memory

LPDDR5:

  • 4, 8, 16, 32 GB, with In-Band-ECC option

eMMC:

  • 16, 32, 64, 128, 256 GB Industrial iNAND

EEPROM:

  • 32-kbit
Graphics

Display:

  • 1x eDP (4K @ 60 Hz) or Single Channel LVDS (18/24-bit) (assembly option)
  • 1x DP++ (4K @ 60 Hz)
Communications Interfaces

CAN:

  • 1x CAN (assembly option instead of 2nd serial port)

Ethernet:

  • 1x 2.5 Gigabit Ethernet (Intel i226)

USB:

  • 2x USB 3.2 Gen2 (up to 10 Gb/s)
  • 8x USB 2.0

SATA:

  • 1x SATA 3.0 (up to 6 Gb/s)

Serial Ports:

  • 2x Serial Port
Other Interfaces

PCIe:

  • 4x PCIe Gen3 (up to 8 Gb/s per Lane) (div. configurations)

SPI:

  • 1x SPI (general purpose)
  • 1x SPI (for external UEFI BIOS flash)

LPC:

  • 1x LPC/eSPI

I2C:

  • 1x I2C

SMBus:

  • 1x SMBus

GPIO:

  • 8x GPIO
General

Power supply:

  • Main Voltage: 4.75 V - 20 V / Standby Voltage: 4.75 V - 5.25 V / RTC Battery Voltage: 3 V

Power consumption:

  • typ. 3 - 17 W / max. TBD

Temperature range:

  • Extended temperature range: -40°C - +85°C
  • Standard temperature: 0°C - +60°C

Plug-in System:

  • COM Express™ Mini, type 10

Dimensions:

  • 84 mm x 55 mm
OS
  • Windows 10 / Windows 10 IoT Enterprise 2021 LTSC
  • Windows 11 IoT Enterprise
  • Linux
  • QNX on request





Ordering Information

TQMxE41M-AA

Intel Atom x7433RE (4-Core, 1.5/3.4 GHz, 32 EU, RT, 9 W TDP Industrial Use Cond.), 8 GB LPDDR5, 32 GB eMMC, eDP, DP, SER0/SER1, TPM 2.0, LPC, -40°C - +85°C (Tcase) (DTR +/-110°C)

TQMxE41M-AB

Intel Atom x7835RE (8-Core, 1.3/3.6 GHz, 32 EU, RT, 12 W TDP Industrial Use Cond.), 16 GB LPDDR5, 32 GB eMMC, eDP, DP, SER0/SER1, TPM 2.0, LPC, -40°C - +85°C (Tcase) (DTR +/-110°C)

Other configurations on request
