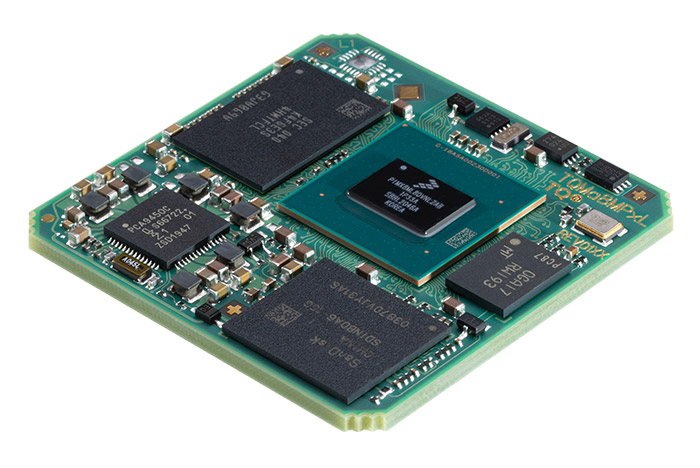

TQMa8MPxL Embedded Cortex®-A53 module

Embedded Cortex®-A53 Module based on i.MX 8M Plus with machine learning hardware support

The TQMa8MP based on the i.MX 8M Plus supports with many features and an integrated NPU (Neural Processor Unit) with up to 2.3 TOPS and an IPU (Image Processor Unit) with 2x 187 MPix in the implementation of applications where artificial intelligence, machine learning/vision is to be applied. A GPU and several graphic interfaces are available for graphically demanding applications. For real-time and security the CPU is supported by a Cortex M7 controller.



Features

  • Arm® Cortex® A53 based on i.MX 8M Plus
  • Advanced Audio properties with HiFi4 DSP
  • Machine Learning Accelerator 2.3 TOPS
  • Integrated Cortex®-M7
  • High-speed communication via 2x Gbit Ethernet (1x TSN), 1x PCle and 2x USB 3.0 interface
  • Low power consumption (typ. 4 W)
  • Integrated security functions
TQMa8MPxL

Specifications

CPU

CPU/Processor:

  • Cortex®-A53 - Up to 1,8GHz

CPU variant:

  • i.MX 8M Plus Quad 8 ML/AI
  • i.MX 8M Plus Quad 6 Video
  • i.MX 8M Plus Quad 4 Lite
Memory

LPDDR4:

  • Up to 8 GB

Quad SPI NOR:

  • Up to 256 MB

eMMC:

  • Up to 256 GB

EEPROM:

  • 0/64-kbit
Graphics

Graphic interface:

  • LCD Interface: 1x MIPI DSI (4 Lanes), LVDS (4/8 Lanes), 1x HDMI 2.0a

Camera interface:

  • 2x MIPI CSI2 (4 Lanes)
Communication interfaces

Ethernet:

  • Up to 2x Gbit-Ethernet (1x TSN)

USB:

  • Up to 2x USB 3.0

CAN:

  • Up to 2x CAN FD

Serial Ports:

  • Up to 4x UART
Other interfaces

SD Card:

  • Up to 3x SDIO / eMMC

PCIe:

  • Up to 1x PCIe 3.0

I2C:

  • Up to 6x I2C

SPI:

  • Up to 3x SPI
  • Up to 1x QSPI

I2S:

  • Up to 18x I²S

Audio:

  • Up to 8x PDM Mic.
  • Up to 1x SPDIF

Debug:

  • JTAG
General

Dimensions:

  • 38 x 38 mm

Temperature range:

  • Standard temperature range: -25°C - +85°C
  • Extended temperature: -40°C - +85°C

Plug-in System:

  • LGA (Land Grid Array) 366 pins

Power supply:

  • 5 V
OS

OS Support:

  • Linux
  • Android on request
  • Windows 10 IOT on request
  • PikeOS™ (on request)





Ordering Information

TQMa8MPQLL-AA

TQMa8MPQLL-AA, Quad 4 Lite Cortex®-A53/1.6 GHz, 16 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°C

TQMa8MPQL-AA

TQMa8MPQL-AA, Quad 6 Video Cortex®-A53/1.6 GHz, 16 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°C

TQMa8MPQL-AB

TQMa8MPQL-AB, Quad 8 ML/AI Cortex®-A53/1.6 GHz, 16 GB eMMC Flash, 2 GB LPDDR4, 64 kB EEPROM, RTC, -25°C - +85°C

STKa8MPxL-AA

STKa8MPxL (Eval Kit) with TQMa8MPxL-Ax, Quad Cortex®-A53/1.6 GHz, 2 GB LPDDR4, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 3.0 HOST, 1x USB 3.0 OTG, 2x ETH 10/100/1000, 2x CAN FD, 1x HDMI, 1x DP, 1x Dual LVDS, 2x MIPI CSI, 1x PCIe M.2 + SIM Card, Audio, GPIOs (4x 24V_IN, 4x 24V_OUT, 2x AI_IN) Temperature sensor, Reset-Button, Micro SD

Other configurations on request
