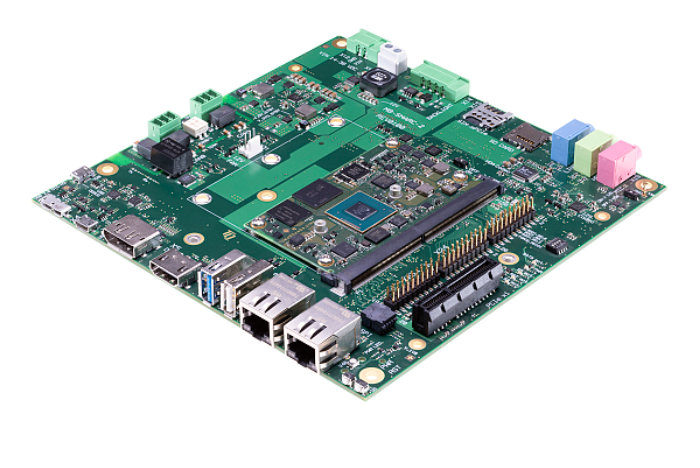

Starterkit STKa95xxLA

Evaluation kit based on TQMa95xxLA

Evaluation kit based on the minimodule TQMa95xxLA, which is based on the i.MX 95 processor an Arm® Cortex®-A55 from NXP. The integrated graphics controller with GPU and hardware acceleration for video encoding and decoding supports applications with high requirements for displaying complex graphics. The starter kit has several interfaces that allow an uncomplicated implementation of various applications.



Features

STKa95xxLA
  • Arm® Cortex® A55 based on i.MX 95
  • Machine Learning Accelerator 2 TOPS
  • Integrated Cortex® M33 and M7
  • High-speed communication via 1x 10 Gbit and 2x Gbit Ethernet (1x TSN), 2x PCIe and 1x USB 3.0 interface
  • MIPI CSI with ISP support
  • Low power consumption (typ. 6 W)
  • Integrated security functions

Ordering Information

STKa95xxLA-AASTKa95xxLA (Eval Kit) with TQMa9596LA-AA, Hexa Cortex A55 w NPU/1,8 GHz, 4 GB LPDDR5, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 3.0 Host, 1x USB Type C, 2x ETH 10/100/1000, 1x 10Gbit Ethernet (SFP+), 2x CAN FD, 1x RS485, 2x LVDS, 1x MIPI CSI, 1x MIPI DSI/CSI, 2x M.2 (1x Key E, 1x Key +SIM), 4x Digital In / Out 24V, 2x Analog In, Audio, Temperature sensor, Reset-Button, SD Card interface, Power Supply, 8 GB SD card, Cables
