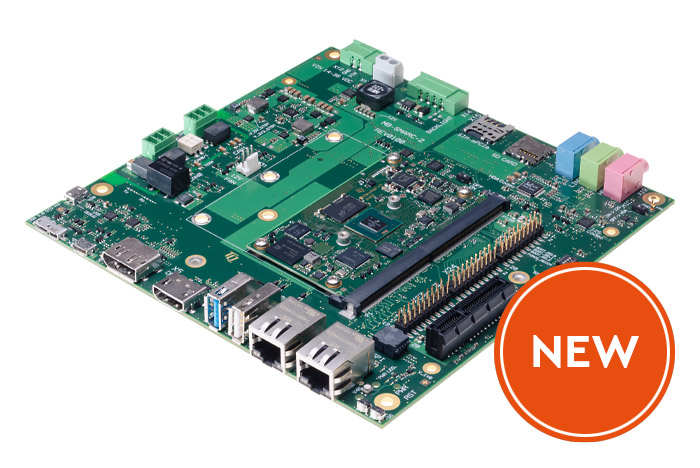

Starterkit STKa8MPxS
SMARC Evaluation kit based on TQMa8MPxS
Evaluation kit based on the minimodule TQMa8MPxS, which is based on the i.MX 8M Plus processor an Arm® Cortex®-A53 from NXP. The integrated graphics controller with GPU and hardware acceleration for video encoding and decoding supports applications with high requirements for displaying complex graphics.The starter kit has several interfaces that allow an uncomplicated implementation of various applications.
Features

- Arm® Cortex® A53 based on i.MX 8M Plus
- Advanced Audio properties with HiFi4 DSP
- Machine Learning Accelerator 2.3 TOPS
- Integrated Cortex®-M7
- High-speed communication via 2x - Gbit Ethernet (1x TSN), 1x PCle and 2x USB 3.0 interface
- Low power consumption (typ. 4 W)
- Integrated security functions
Ordering Information
STKa8MPxS-AA | STKa8MPxS (Eval Kit) with TQMa8MPxS-AA, Quad Cortex® A53/1,6 GHz 2 GB LPDDR4, 16 GB eMMC Flash, 64 kB EEPROM, RTC, 3x RS232, 2 x CAN FD separated, 1x USB 3.0 OTG, 1x USB 3.0 HOST, 1x USB 2.0 HOST, 2x ETH 10/100/1000, 1x Display Port, 1x HDMI, 1x Dual LVDS, 1x PCIe, Audio, RTC, Temperature sensor, Reset-Button, SD interface, Power Supply, 4 GB SD card, Cables, Passive cooling |
