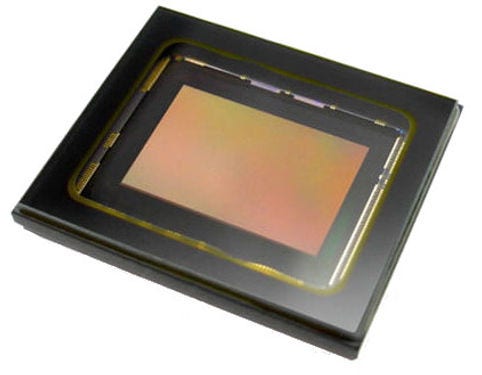

SONY IMX485 is a diagonal 12.8mm (type 1/1.2) CMOS active pixel type solid-state image sensor with a square pixel array and 8.42M effective pixels. It is only available in color. This chip operates with analog 2.9V, digital 1.2V and interface 1.8V triple power supply. It has low power consumption. High sensitivity, low dark current and no smear are achieved. This chip features an electronic shutter with variable charge-integration time.
- Related Documents
3840(H) x 2160(V)
2.9µm x 2.9µm
Maximal Frame Rate @Full Resolution
MIPI D-PHY (2, 4, 8 lanes)
