CORNING C-S-25H0-075

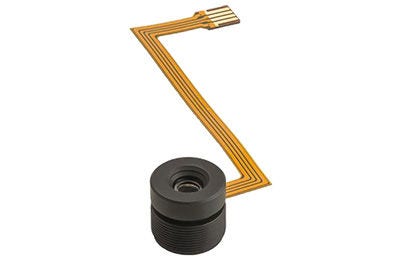

The Corning Varioptic C-S-25H0-075 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats from 1/4" to 1/2.5". The C-S-module can be driven by the same drivers as the A-25H0 lens.

Specifications

Product Name	CORNING C-S-25H0-075
Manufacturer	Corning
Sensor Size	1/2.5"
Focal Length	7.5mm
Mount	S-mount
F-number	2.9
Optical Format	5cm
Minimum Object Distance	3.3µm x 3.3µm
Field of View	1/4'' 33° 1/3'' 44° 1/2.7'' 48° 1/2.5'' 51°
Image Circle Diameter	7.2mm
Field Thread	M12 P=0.5mm
