CORNING C-S-25H0-026

The Corning Varoptic C-H-16F0-036 module integrates a fixed lens module and an A-16F0 variable focus lens in an M8 receptacle. The module is build with an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily iontegrated into a standard M8 sensors board. The C-H-module is compatible with imaging sensor formats up to 1/3". The C-H module can ber controlled by the same drivers as the A-Series lenses.

The Corning Varioptic C-S-25H0-036 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12x0.5 receptacle (S-mount). The C-S-25H0-036 has an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated with a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats up to 1/3". The C-S-module can be controlled by the same drivers as the A-25H0.

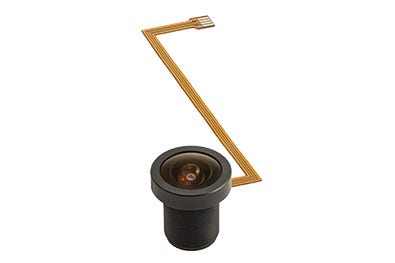

The Corning Varioptic C-S-25H0-026 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats up to 1/2.4". The C-S-module can be driven by the same drivers as the A-25H0 lens.

The Corning Varioptic C-S-25H0-075 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats from 1/4" to 1/2.5". The C-S-module can be driven by the same drivers as the A-25H0 lens.

The Corning Varioptic C-S-25H0-096 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats from 1/4" to 1/1.8". The C-S-module can be driven by the same drivers as the A-25H0 lens.
