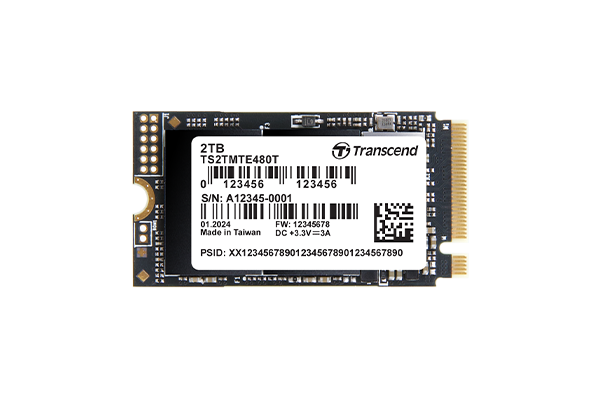

Transcend MTE480T and MTE480T‑I PCIe M.2 SSDs

Product Image

Secure, Ultra-Fast PCIe Gen4 SSDs Built for Industrial Reliability

The MTE480T is a high-performance M.2 NVMe SSD designed for embedded and industrial systems that require both speed and security. As a TCG Opal 2.0–compliant self-encrypting drive (SED), it protects data with hardware-based AES 256-bit encryption and LBA-level access controls. For extreme conditions, the MTE480T-I extends the operating range to -40°C to 85°C, providing enhanced endurance and sustained performance for mission-critical applications.

Features

Supports NVM command
Dynamic thermal throttling
Built-in LDPC ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Key components fortified by default with Corner Bond technology
30µ" PCB gold finger
Anti-sulfur technology implemented to prevent sulfurization in the environment

Appearance

Dimensions	42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09")
Weight	5 g (0.18 oz)
M.2 Type	2242-S2-M
Form Factor	M.2 2242

Interface

Bus Interface	NVMe PCIe Gen4 x4

Storage

Capacity	256 GB/512 GB/1 TB/2 TB
Flash Type	112-layer 3D NAND flash

Operating Environment

Operating Voltage	3.3V±5%
Operating Temperature	Extended Temperature: -20°C (-4°F) ~ 75°C (167°F) Wide Temperature: -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature	-55°C (-67°F) ~ 85°C (185°F)
Humidity	5% ~ 95%
Shock	15 G, 11 ms, 3 axis
Vibration (Operating)	20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)

Power

Power Consumption (Operation)	5.8 watt(s)
Power Consumption (IDLE)	0.72 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark)	Read: Up to 5,000 MB/s Write: Up to 4,100 MB/s
4K Random Read/Write (IOmeter)	Read: Up to 500,000 IOPS Write: Up to 415,000 IOPS
Mean Time Between Failures (MTBF)	3,000,000 hour(s)
Terabytes Written (TBW)	Up to 2,640 TBW
Drive Writes Per Day (DWPD)	1.2 (3 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses endurance under the highest capacity.

Warranty

Certificate	CE/UKCA/FCC/BSMI
Warranty	Three-year limited warranty
Warranty Policy	View the Transcend Warranty Policy here. Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage. Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification. Scope Pro software is required by request. Please contact us for more information.

Ordering Information

256GB	TS256GMTE480T
	TS256GMTE480T-I
512GB	TS512GMTE480T
	TS512GMTE480T-I
1TB	TS1TMTE480T
	TS1TMTE480T-I
2TB	TS2TMTE480T
	TS2TMTE480T-I
