CORNING

The Corning Varioptic A-25H variable focus lens fits the low footprint systems requiring fast response time and large focusing range. It provides a fast-track to market for product designers who need an easy to integrate, high-performance auto focus solution.

The Corning Varioptic A-39N variable focus lens is designed specifically for variable focus products needing a large clear aperture, long focal objective, large sensors, C-Mount objective lenses, laster beam shapin, etc. It is perfectly suited for applications such as industrial vision, medical imaging cameras, optical equipment and biometric devices.

The Corning Varoptic C-C-39N0-160 is an electronically focus controllable C-Mount objective, based on the A-39N0 variable focus lens. It incorporates all necessary electronic components to drive the lens, and just needs a DC power supply; focus can be controlled though either an RS232, I²C, Analog or SPI input. With a 16mm EFL, and compatible with 2/3" sensors, it is specifically designed for machine vision applications.

The Corning Varioptic A-25H variable focus lens fits the low footprint systems requiring fast response time and large focusing range. It provides a fast-track to market for product designers who need an easy to integrate, high-performance auto focus solution.

The Corning Varioptic A-58N variable focus lens features a large aperture with large dynamic range and a low WFE, without compromising on the form factor or ease of integration.

The Corning Varioptic C-S-25H0-036 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12x0.5 receptacle (S-mount). The C-S-25H0-036 has an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated with a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats up to 1/3". The C-S-module can be controlled by the same drivers as the A-25H0.

The Corning Varoptic C-C-39N0-250 is an electronically focus controllable C-Mount objective, based on the A-39N0 variable focus lens. It incorporates all necessary electronic components to drive the lens, and just needs a DC power supply; focus can be controlled though either an RS232, I²C, Analog or SPI input. With a 25mm EFL, and compatible with 2/3" sensors, it is specifically designed for machine vision applications.

The Corning Varioptic C-S-25H0-026 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats up to 1/2.5". The C-S-module can be driven by the same drivers as the A-25H0 lens.

The Corning Varioptic A-39N variable focus lens is designed specifically for variable focus products needing a large clear aperture, long focal objective, large sensors, C-Mount objective lenses, laster beam shapin, etc. It is perfectly suited for applications such as industrial vision, medical imaging cameras, optical equipment and biometric devices.

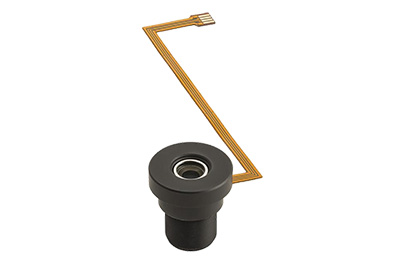

The Corning Varioptic C-S-39N0-158 auto focus lens module integrates a fixed lens module with a Corning Varioptic A-25H0 variable focus lens in an M12 receptacle (S-mount). The module is built-in an FPC cable and can be connected to a standard 1mm pitch FPC connector. It can be easily integrated in a standard M12 sensor board. The C-S-module is compatible with imaging sensor formats up to 1/3". The C-S-module can be driven by the same drivers as the A-39N0 lens.
