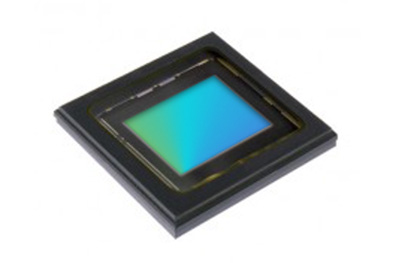

SONY IMX715AAQR1 is a diagonal 6.4mm (type 1/2.8) CMOS active pixel type solid state image sensor with a square pixel array and 8.46M effective pixels. This chip operates with analog 2.9V, digital 1.1V, and interface 1.8V triple power supply. It has low power consumption. High sensitivity, low dark curret and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge integration time.
- Related Documents
|Product Name||SONY IMX715AAQR1|
|Shutter Type||Rolling Shutter|
|Recording Pixels||3864(H) x 2228(V)|
|Pixel Size||1.45µm x 1.45µm|
|Maximal Frame Rate @Full Resolution||90fps|
|Interface||MIPI (2 / 4 lanes)|
