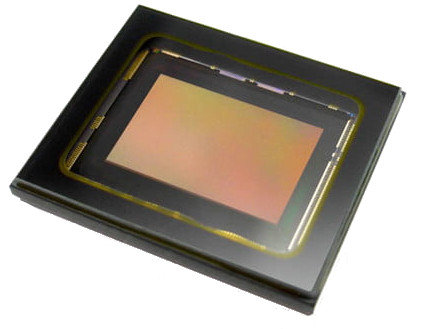

SONY IMX556 is a fully integrated optical Time-of-Flight (ToF) camera sensor. The sensor features 640 x 480 (VGA) time-of-flight pixels based on the DepthSenseTM pixel technology. Combined with a modulated light source, this sensor is capable of measuring distance and reflectivity with VGA resolution. This chip operates with analog 2.7V, digital 1.2V, and interface 1.8V triple power supply. It has low power consumption. The device features CSI-2 serial data outputs.
- Technology Guides
|Product Name||SONY IMX556PLR-C|
|Shutter Type||Global Shutter|
|Recording Pixels||642(H) x 484(V)|
|Pixel Size||10µm x 10µm|
|Maximal Frame Rate @Full Resolution||60fps|
