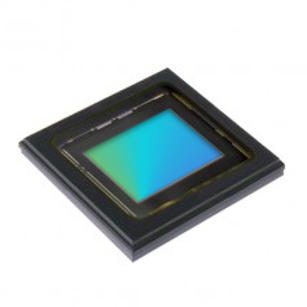

SONY IMX515 is a diagonal 6.4mm (type 1/2.8) CMOS image sensor with a square pixel array and 8.46M effective pixels. It is only available in color. It operates with 3 power supply voltages: analog 2.9V, digital 1.1V and interface 1.8V. It achieves low power consumption. High sensitivity, low dark current and no smear are achieved. This chip features an electronic shutter with variable charge-integration time.
- Related Documents
3840(H) x 2160(V)
1.45µm x 1.45µm
Maximal Frame Rate @Full Resolution
MIPI D-PHY (2, 4 lanes)
