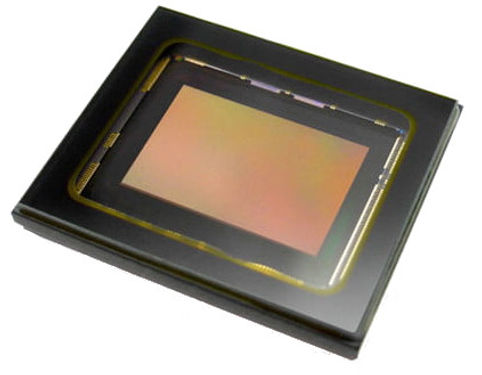

SONY IMX392 is a diagonal 7.9mm (type 1/2.3) CMOS active pixel type solid-state image sensor with a square pixel array and 2.35M effective pixels. It is available in monochrome (IMX392LLR) and in color (IMX392LQR). This chip features a global shutter with variable charge-integration time. It operates with analog 3.3V, digital 1.2V and interface 1.8V triple power supply. It has low power consumption. High sensitivity, low dark current and low PLS characteristics are achieved.
- Related Documents
|Product Name||SONY IMX392LLR-C|
|Shutter Type||Global Shutter|
|Recording Pixels||1936 (H) x 1216(V)|
|Pixel Size||3.45µm x 3.45µm|
|Maximal Frame Rate @Full Resolution|
|Interface||sub LVDS Serial (2, 4, 8 lanes)|
